Description

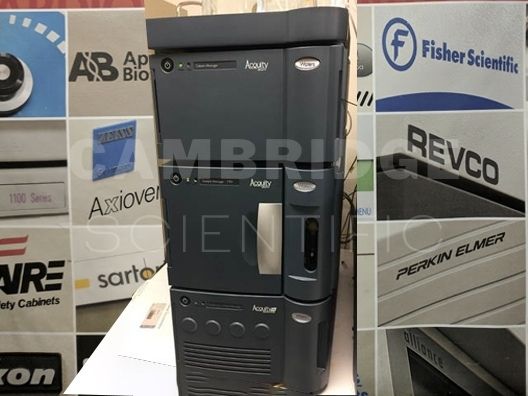

The Waters ACQUITY UPLC H-Class System delivers the flexibility of quaternary solvent blending with the advanced performance of UPLC® separations. The system»s holistic design is targeted for routine analysis and method development use and is perfectly suited for running both HPLC and UPLC applications while still realizing the improved resolution and sensitivity of UPLC separations.
Includes:
- TUV Detector (PDA Detector $1000 additional)
- Sample Manager – FTN
- Column Manager to control up to 4 Columns
- Quaternary Solvent Manager
- 15,000 psi up to 1.0 mL/min,
- 9000 psi up to 2.0 mL/min
- Computer Loaded with Empower
Specifications:
- Dwell volume (total system): <,400 ~L (includes standard 100 ~L mixer)
- Integrated leak management: Leak sensors, as standard, and safe leak handling
- Quantum synchronization: Injection synchronization between pump and sample manager enhances retention time reproducibility
- Set table flow rate range:
- 01 0 to 2.000 mLlmin, in 0.001 mL increments (firmware version 1.5x and earlier)
- 010 to 2.200 mL/min, in 0.001 mL increments (firmware version 1.60)
- 001 to 2.200 mLlmin in 0.001 mL increments (firmware version 1.65 and later)
- Maximum operating pressure:
- 15,000 psi up to 1.0 mL/min, 9000 psi up to 2.0 mL/min (firmware version l.5x and earlier)
- 15,000 psi up to 1.0 mL/min, 7800 psi up to 2.2 mL/min (firmware version 1.6x and later)
- pH range: 2 to 12
- Unattended operation: Leak sensors and safe leak handling, full 96-hour diagnostic data display through console software
- Cycle time: <,30s Inject to Inject
