Features:
- 15 kW output power
- 0-1000 V output voltage
- 0-45 A output current
- 5″ touch screen and rotary knob control
- Easy master/slave parallel operation
- CV / CC / CP modes
- Remote sensing feature for line drop compensation
- Built-in programmable feature with total 5 groups and 99 sequences to set up voltage, current and time
- CE and RoHS certified
- Complete protection features including OVP, OCP, OPP, input OVP/UVP and OTP

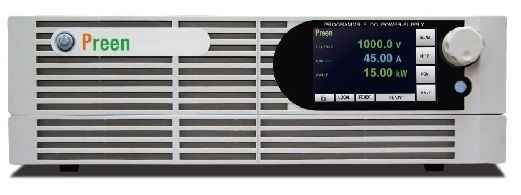

AC Power Corp. (Preen) introduces its latest programmable DC power supply, ADG-L Series which has 19 models and three different output power, 5kW, 10 kW, and 15 kW. Utilizing PWM technology, ADG-L delivers a stable output and precise measurement.
With CV, CC, and CP mode, ADG-L series is ideal for Photovoltaic, Electric vehicles, battery, fuse/capacitor, and third-party laboratory testing. The 1000V high voltage model is especially suitable for EV-related R&D testing and product aging testing. Compliant with RoHS standard, ADG-L series is not only a cost-effective but also an environmental-friendly DC power supply. It also features completed protections, which includes OVP, OCP, OPP, UVP, OTP, etc.
Технические характеристики
| Manufacturer | Preen |
|---|---|
| Condition | New |
| Current | 45 A |
| Voltage | 1 kV |
| Power | 15 kW |
