Additional Features:
- AC, DC and AC+DC power source
- Low total harmonic distortion meets the IEC 61000-3-2 standard
- Comprehensive measurement capabilities Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
- 0.98 power factor at AC input stage
- Built-in standard waveforms sine, square and clipped sine
- 30 built-in THD waveforms
- Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
- Step, List and Pulse modes for generating power line disturbance (PLD) simulations
- List mode supports 10 user-defined programs with up to 100 programmable steps
- Generate custom harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations
- Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
- Comprehensive protection modes OVP, OCP,OPP, OTP, fan failure, output timer and key lock
- Downloadable LabVIEW driver and soft panel software for remote control
- Standard USB (USBTMC-compliant), RS232, LAN, and GPIB remote interfaces
- Included Accessories: AC power cord with input connector, test report & certificate of calibration
- Optional Accessories: Rackmount ears & handles (RK3U)
- Three-Year Warranty
Applications
- Pre-compliance testing according to IEC61000-3-2 and IEC61000-4-11/14/28/34
- Simulate common grid faults, voltage dips and other disturbances
- Evaluate transformers, TRIACs, SCRs, and passive components

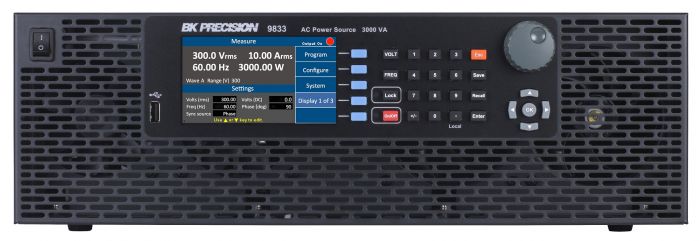

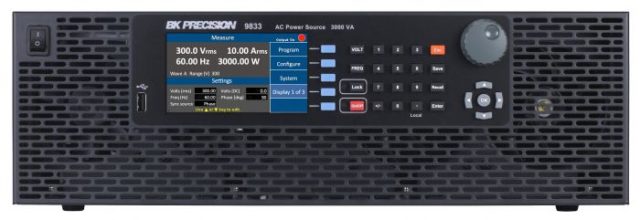

The BK Precision 9833 is a programmable AC power source that provides high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs. The high output current crest factor and low input resistance are suitable for high inrush current measurements when evaluating capacitive or inductive loads.
Технические характеристики
| Manufacturer | BK Precision |
|---|---|
| Condition | New |
| Amps | 15 A |
| Frequency | 1.2 kHz |
| Phase | 1 |
| Power (VA) | 3 kVA |
| Volts | 300 V |
