| Voltage 60V, Current 80A |
Additional Features:
- Voltage: 40V
- Current: 128A
- Power: 5000W
- Auto-parallel up to three units
- Outputs can be connected in series
- Programmable over-voltage and over-current protection
- Over-temperature protection
- Discrete Fault Indicator/Remote Inhibit (DFI/RI)
- Self-test occurs at power-on from an GPIB command
- User definable power-on state
- VXI plug & play drivers

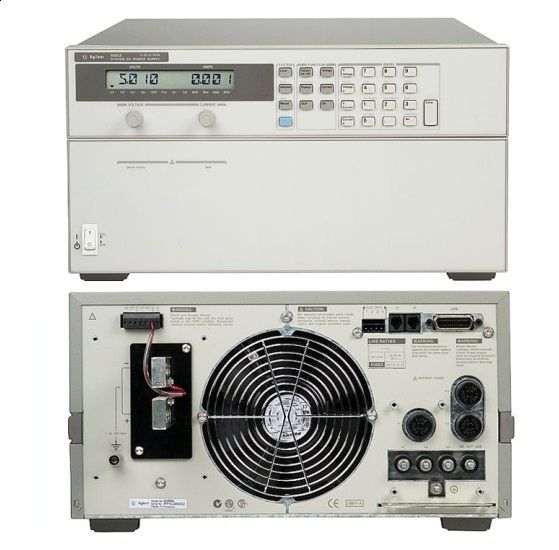

The Agilent 6684A has extremely low ripple and noise for a 5000 Watt DC Power Supply. This helps the built-in measurement system make extremely accurate current and voltage measurements. Selectable compensation is provided for problem-free powering of inductive loads.
Programming of the DC output and the extensive protection features can be done either from the front panel or using industry standard SCPI commands, via the GPIB. Using the serial link, up to 16 power supplies can be connected through one GPIB address. Test system integration can be further simplified by using the VXIPlug&Play drivers.
The output voltage and current can also be controlled with analog signals. This is helpful for certain types of noisy environments, and also immediate reactions to process changes.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Current | 128 A |
| Voltage | 40 V |
| Power | 5 kW |
