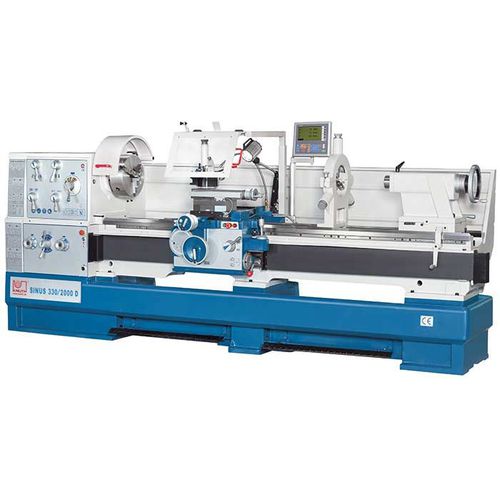

Sinus D is the largest series in the universal lathes segment. The construction follows a classic design but is based on a heavy, one-piece cast machine bed. As with heavy-duty lathes, the frictional connection between the motor and the spindle takes place via a manual multi-disc clutch. With integrated functions such as the removable bed bridge, rapid traverse and a taper turning device, this series offers optional solutions for machining long workpieces or large flanges. • Removable bridge (250 mm) for machining of large parts with diameters up to 1035 mm • High accuracy and low-noise operation even at high cutting power • Heavy and large bed • Hardened guideways (>HB 400) • 105 mm spindle capacity for machining of large parts • Manual central lubrication • Clutch for soft startup with heavy parts • Automatic lubrication of headstock and main drive • Protected leadscrew • Overload protection for feed shaft and leadscrew • Support moves in linear and cross directions via rapid feed
Технические характеристики
CharacteristicsControl typeconventionalSpindle orientationhorizontalNumber of axes3-axisSpindle mountD1-8Applicationsfor heavy-duty machiningOther characteristicsuniversal, precision, powerful, flatbed, high-rigidity, cutting, 1-spindleDiameter
660 mm, 800 mm (25.98 in)
Spindle speed
Max.: 1,600 rpm (10,053.096 rad.min-1)
Min.: 25 rpm (157.08 rad.min-1)
Maximum part length
1,500 mm, 2,000 mm, 3,000 mm (59 in)
Bar capacity
105 mm (4 in)
Axe X
368 mm (14 in)
Axe Z
230 mm (9 in)
Rapids on X
2,000 mm/min (1 in/s)
Rapids on Z
40,000 mm/min (26 in/s)
Nominal power
7,500 W (10.2 hp)
Overall lenght
3,210 mm, 3,240 mm, 3,710 mm, 4,710 mm (126 in)
Overall width
1,140 mm, 1,230 mm (45 in)
Overall height
1,140 mm, 1,600 mm (45 in)
Weight
2,800 kg, 2,900 kg, 3,220 kg, 3,300 kg (6,173 lb)
