Features:
- Five instruments in one (IV Source, IVR Measure)
- Source and sink (4-quadrant) operation
- 0.012% basic measure accuracy with 5½-digit resolution
- 2-, 4-, and 6-wire remote V-source and measure sensing
- 1700 readings/second at 4½ digits via GPIB
- Pass/Fail comparator for fast sorting/binning
- Available high speed sense lead contact check function
- Programmable DIO port for automation/handler/prober control
- Standard SCPI GPIB, RS-232, and Keithley Trigger Link interfaces
- Keithley LabTracer 2.0 I-V curve tracing application software (download)
The Keithley 2400 is designed specifically for test applications that demand tightly coupled sourcing and measurement. All source-measure models provide precision voltage and current sourcing as well as measurement capabilities. Each SourceMeter instrument is both a highly stable DC power source and a true instrument-grade 5-1/2 digit multimeter. The power source characteristics include low noise, precision, and readback.
In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for the communications, semiconductor, computer, automotive, and medical industries will find the source-measure instruments invaluable for a wide range of characterization and production test applications.

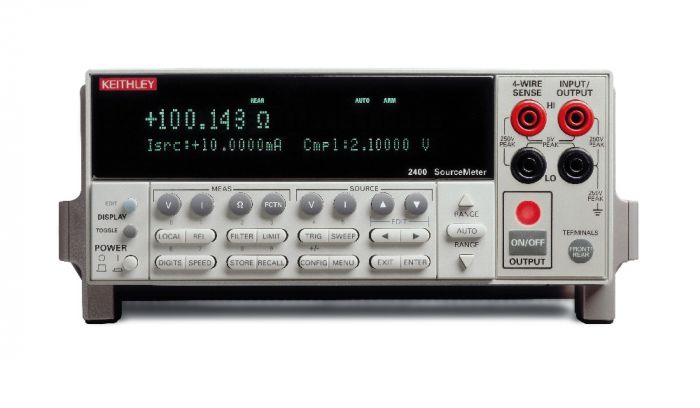

The image is a representation of selection. See specifications for product details.
Технические характеристики
| Manufacturer | Keithley |
|---|---|
| Condition | Used |
| Volts | 200 V |
| Amps | 1 A |
| Power | 20 W |
