Additional Features:
- Wide coverage up to 105V/7A DC 100W, 100V/10A Pulse 1000W max.
- Dual 1MS/s digitizers for fast sampling measurements
- Five-inch, high resolution capacitive touchscreen GUI
- 0.012% DCV accuracy with 6½-digit resolution
- Source and sink (4-quadrant) operation
- Four “Quickset” modes for fast setup and measurements
- Context-sensitive help function
- Front panel input banana jacks, rear panel mass termination screw connections
- SCPI and Test Script Processor (TSP®) programming modes
- Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations
Accessories Supplied:
- 2460-KIT: Rear Panel Mating Mass Terminated Screw Connector
- 8608: High Performance Test Leads
- USB-B-1: USB Cable, Type A to Type B, 1m (3.3 ft)
- CS-1616-3: Safety Interlock Mating Connector
- CA-180-3A: TSP-Link/Ethernet Cable
- Documentation CD
- 2461 QuickStart Guide
- Test Script Builder Software
- KickStart Startup Software
- LabVIEW and IVI Drivers

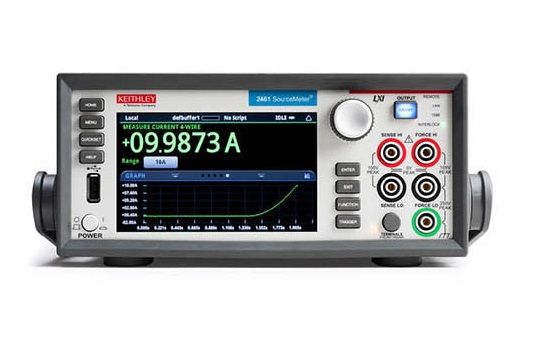

The Model 2461 High Current SourceMeter Source Measure Unit (SMU) Instrument brings advanced Touch, Test, Invent® technology right to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touchscreen technology to make testing intuitive and minimize the learning curve to help engineers and scientists learn faster, work smarter, and invent easier.
Технические характеристики
| Manufacturer | Keithley |
|---|---|
| Condition | New |
| Volts | 100 V |
| Amps | 10 A |
| Power | 1 kW |
