Features:
- Built-in voltage, current, and power meter
- List mode (timed programming): program up to 20 steps
- Automatic CV/CC crossover operation
- Protection features: overvoltage (OVP), overcurrent (OCP), overtemperature (OTP) and key-lock function
- Control up to 31 power supplies from one PC through RS485
- Store up to 10 voltage and current combinations for quick output
- Lightweight and compact
- Large back-lit LCD display
- Thermostatically-controlled fan with linear-speed control to minimize fan noise
- USB and RS485 interfaces, supports basic SCPI commands
Accessories (included):
- PC software, RS485 adapter, USB cable, and test report
Applications:
- Suitable for many applications including repetitive test routines in R&D, production testing, product evaluation, or in education environments.
Specifications:
- 40 V
- 5 A
- 200 W

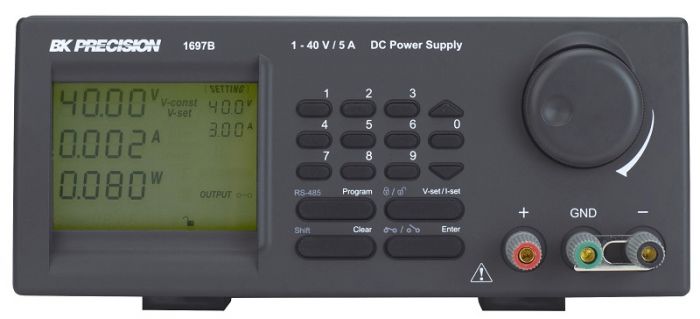

The 1697B is a compact 200 W DC power supply that is equipped with programming and protection features commonly found in more expensive performance instruments. Programming features include list mode for repetitive operation and 10 user-configurable voltage/current presets for quick recall. This benchtop power supply also supports adjustable voltage and current limits to protect the device under test.
Технические характеристики
| Manufacturer | BK Precision |
|---|---|
| Condition | New |
| Current | 5 A |
| Voltage | 40 V |
| Power | 200 W |
