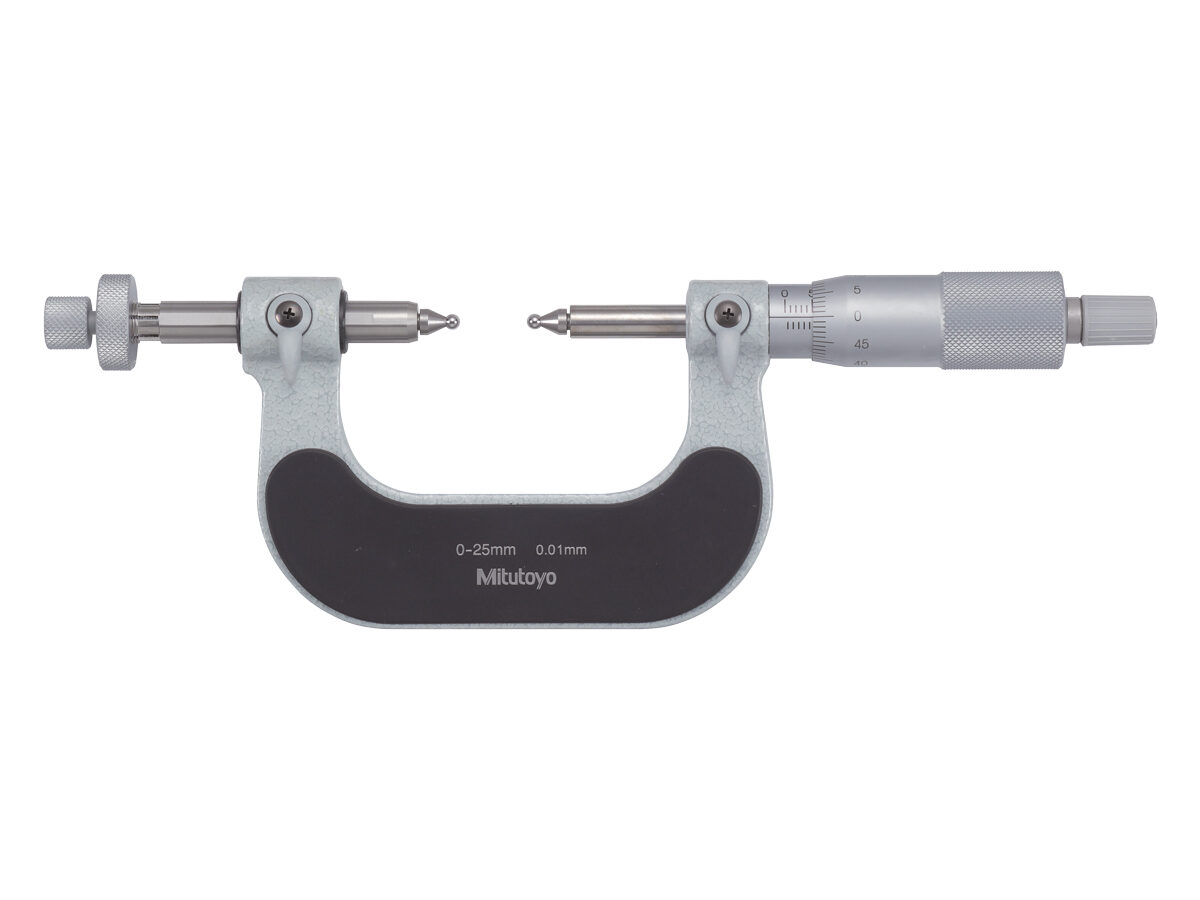

The Mitutoyo gear tooth micrometer series measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Interchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional
- Measuring surfaces are constructed of carbide to reduce wear
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
- Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Includes a standard bar except for 0-25mm and 0-1” models
- Supplied in fitted plastic case (models over 150mm have a wooden case)
| Order No.: | Product Image: | Range: | Mass: | |
|---|
| 124-173 | — | 0-25mm | 295g |
| 124-174 | — | 25-50mm | 400g |
| 124-175 | — | 50-75mm | 460g |
| 124-176 | — | 75-100mm | 540g |
| 124-177 | — | 100-125mm | 640g |
| 124-178 | — | 125-150mm | 760g |
| 124-179 | — | 150-175mm | 900g |
| 124-180 | — | 175-200mm | 1060g |
| 124-181 |  | 200-225mm | 1230g |
| 124-182 | — | 225-250mm | 1430g |
| 124-183 | — | 250-275mm | 1620g |
| 124-195 | — | 275-300mm | 2070g |
| 124-173 |
| 124-174 |
| 124-175 |
| 124-176 |
| 124-177 |
| 124-178 |
| 124-179 |
| 124-180 |
| 124-181 |
| 124-182 |
| 124-183 |
| 124-195 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Spindle Feed Error: | 3µm |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Ratchet Stop |
|---|
| Graduation: | 0.01mm |
|---|
