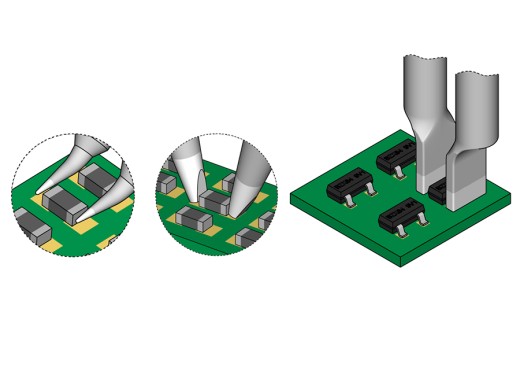

JBC C120 soldering tips are suitable for very fine soldering and desoldering work and working with the PA120 Micro Tweezers. Due to their small size, these points are suitable for SMD and to work with under a microscope.
Be aware! The two-seater requires two points but the points are sold individually. For some C120 points The points to the left and to the right are shown in the table. For other points you can simply order 2 of the same points.
You can select the type of point you want to buy in the top right corner. The different models are described below.
Conical bent ModelDimensions tip (mm)PriceStock C120-0010.2 x 1.5 36.86 €36.86 Excl. VAT C120-0020.2 x 1.5 36.86 €36.86 Excl. VAT C120-9020.3 x 1.5 36.86 €36.86 Excl. VAT C120-0060.5 x 1.5 36.86 €36.86 Excl. VAT C120-0040.7 x 1.5 36.86 €36.86 Excl. VAT C120-0120.7 x 5.0 36.86 €36.86 Excl. VAT Chisel bent ModelDimensions tip (mm)PriceStock C120-0110.3 x 0.6 36.86 €36.86 Excl. VAT Blade ModelDimensions tip (mm)PriceStock C120-0130.35 x 2.0 44.83 €44.83 Excl. VAT C120-0030.7 x 3.0 44.83 €44.83 Excl. VAT C120-007 (Right)0.7 x 3.5 44.83 €44.83 Excl. VAT C120-008 (Left)0.7 x 3.5 44.83 €44.83 Excl. VAT C120-0050.7 x 5.0 44.83 €44.83 Excl. VAT C120-009 (Right)0.7 x 6.0 44.83 €44.83 Excl. VAT C120-010 (Left)0.7 x 6.0 44.83 €44.83 Excl. VAT
We can supply all C120 soldering points. If you want a point that is not listed here, please contact us.
Large consumers
If you order 10 or more pieces at once, we will give you a discount (also on mixed orders). Please contact us for a tailor-made offer.
