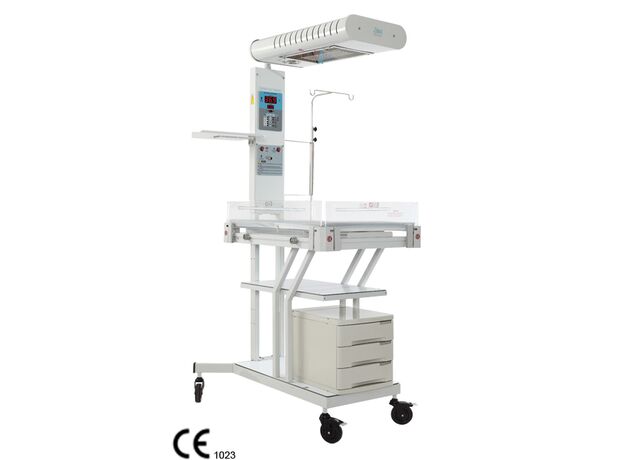

Product Description Radiant Warmer ,RHW2101B Fixed Cradle , Zeal Medical
- Mobile radiant heat warmer-fixed height
- Mounted on 4 swivel castors (100mm) — 2 castors with brake
- Baby tray with mattress along with head up/down facility and X-ray cassette holder
- Mattress density approx. 21-25 kg/m3 and removable washable water proof cover
- 6mm thick — Transparent acrylic drop down and lockable side panel
- Side tray for monitor and infusion rod for syringe pump/SS IV rod
- 2 shelves below baby bed for under surface Phototherapy and storage
- Under table plastic moulded 3 storage drawers.
- Metallic, swivelling hood suspended above the table integrates heating element and overhead light
- Heating element – Ceramic heater (650 W) with parabolic reflector, protected by metallic grid.
Temperature Controller Specifications
- Big Red LED display for skin temperature, set temperature & timer.
- LED indicator for selected mode & alarm.
- Bar-graph for heater power.
- Integrated timer – 1 to 09 min with count-up feature.
- Temperature range – skin: 34 to 38°C (user pre-settable).
- Monitoring of skin temperature by means of sensor, range: 30 to 42°C .
- Control unit – auto over-temperature cut-off with audio-visual alarms according to pre-set temperature to avoiding overheating.
- Display indicates system errors, sensor failure, alarm for high/low, over/under temperature for skin, heater failure, power control device failure.
- Audio-Visual alarm for power failure.
