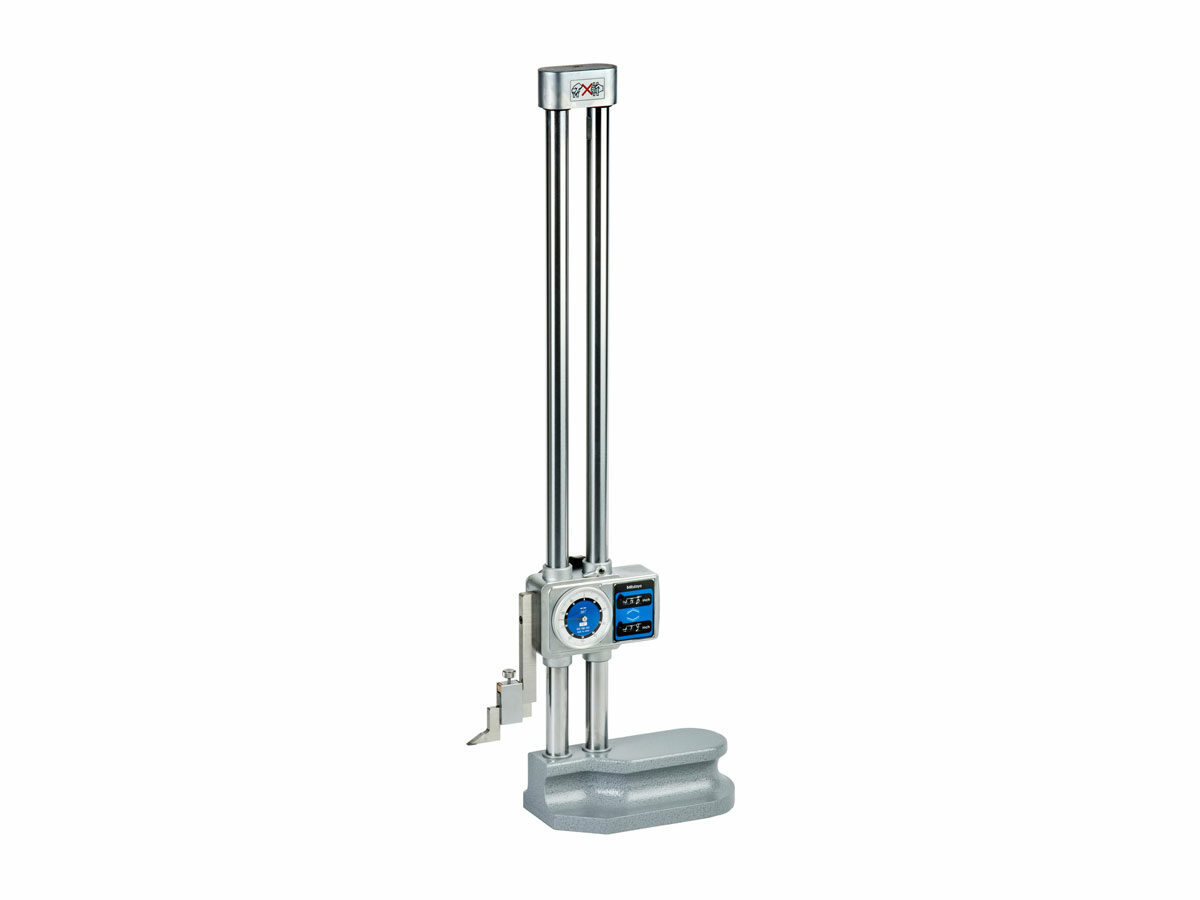

The Mitutoyo dial height gage provides precise height in a unit that is easy to use. The height gage has a rigid, double-column structure which ensures high measuring accuracy and repeatability. The included carbide-tipped long scriber is highly durable and provides accurate marks on your workpiece. The dial and digital counters can be re-zeroed at any scriber position.
- Available in Metric and Inch models
- Models available in four different height ranges
- Large function buttons on display are positioned for easy operation
- Inclined slider handle improves slider ergonomics
- Base is shaped to provide a secure grip
- Coarse/fine feeding switch for fast adjustments and precise measurements
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Mass: | Required Accessories: | |
|---|
| 192-130 | — | Metric | 0-300mm | ±0.03mm | 0.01mm | 4.2kg | |
| 192-131 | — | Metric | 0-450mm | ±0.05mm | 0.01mm | 9.2kg | |
| 192-132 | — | Metric | 0-600mm | ±0.05mm | 0.01mm | 9.7kg | |
| 192-133 | — | Metric | 0-1000mm | ±0.07mm | 0.01mm | 17.0kg | |
| 192-150 | — | Inch | 0-12″ | ±.0015″ | 0.001″ | 4.2kg | |
| 192-151 | — | Inch | 0-18″ | ±.002″ | 0.001″ | 9.2kg | |
| 192-152 | — | Inch | 0-24″ | ±.002″ | 0.001″ | 9.7kg | |
| 192-153 | — | Inch | 0-40″ | ±.003″ | 0.001″ | 17.0kg | |
| 192-130 |
| 192-131 |
| 192-132 |
| 192-133 |
| 192-150 |
| 192-151 |
| 192-152 |
| 192-153 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Optional Accessories: | 900209, 900321, 953638 |
|---|
