Внешний микрометр-удлинитель наковальни

Внешний микрометр Mitutoyo с удлинительными кольцами пятки и ходом шпинделя 50 мм обеспечивает широкий диапазон измерений без ущерба для точности. Доступны в дюймовых и метрических измерениях.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo large-span ratchet stop outside micrometer is ideal for measuring metal and non-metal workpieces by controlling the amount of spindle force. A ratchet-stop mechanism helps provide uniform pressure on a workpiece for precise, repeatable measurements.

Available in inch and metric models
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Workpiece stopper keeps workpieces centered properly for consistent, accurate measurements (on 1000mm range models only)
Square and round pipes are combined to keep the frame rigid and lightweight for easier use (for models over 1000mm range)
Measurements are laser etched on thimble for easier reading
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
Supplied in a fitted wooden case

Order No.:	Product Image:	Units:	Range:	Graduation:	Mass:	Accuracy:	Flatness:	Parallelism:

Order No.:

105-103	—	Metric	500-600mm	0.01mm	5.53kg	±6µm	1.3µm	8µm or less
105-104	—	Metric	600-700mm	0.01mm	6.35kg	±6µm	1.3µm	9µm or less
105-105	—	Metric	700-800mm	0.01mm	7.17kg	±6µm	1.3µm	10µm or less
105-106	—	Metric	800-900mm	0.01mm	7.99kg	±6µm	1.3µm	11µm or less
105-107	—	Metric	900-1000mm	0.01mm	8.81kg	±6µm	1.3µm	12µm or less

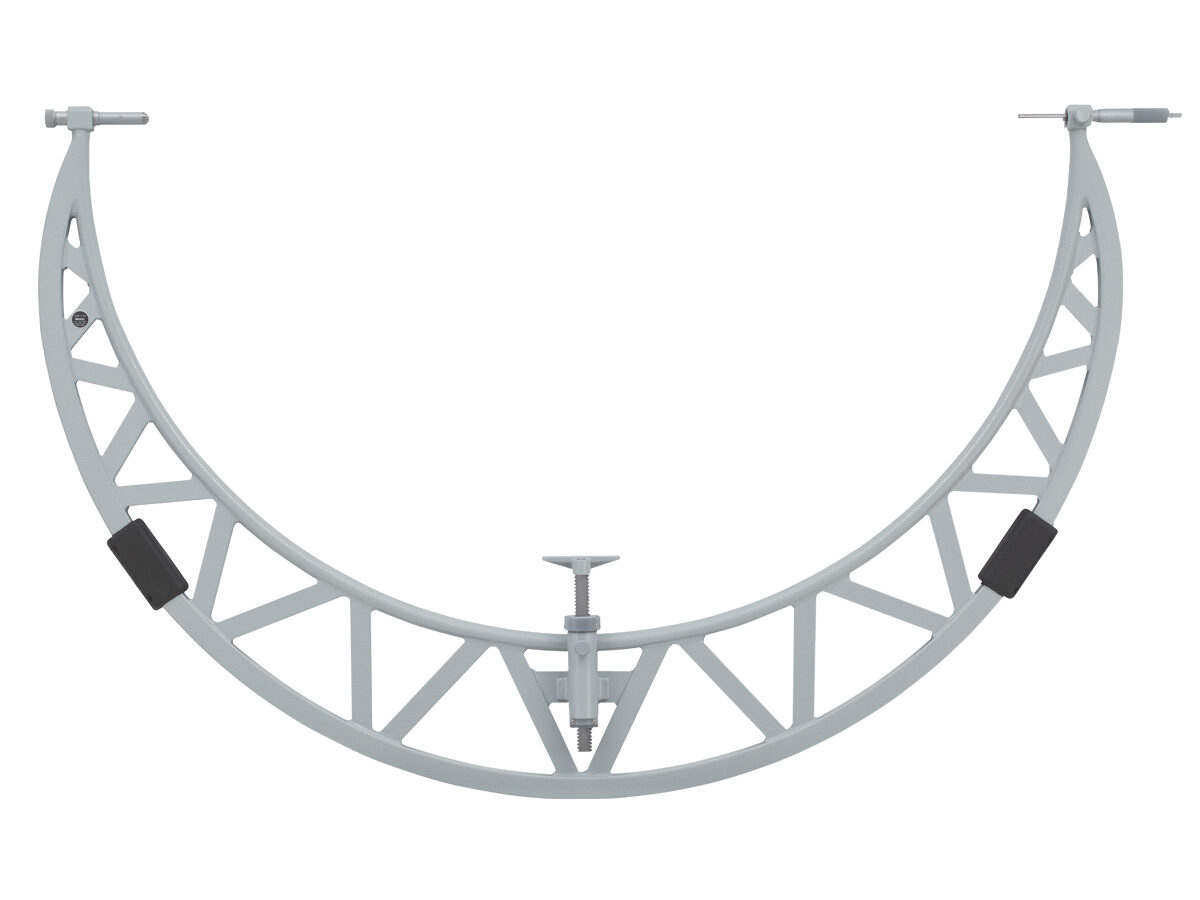

105-408		Metric	1000-1100mm	0.01mm	6.37kg	±6µm	1.3µm	13µm or less
105-409	—	Metric	1100-1200mm	0.01mm	7.08kg	±6µm	1.3µm	14µm or less
105-410	—	Metric	1200-1300mm	0.01mm	7.79kg	±6µm	1.3µm	15µm or less
105-411	—	Metric	1300-1400mm	0.01mm	8.5kg	±6µm	1.3µm	16µm or less
105-412	—	Metric	1400-1500mm	0.01mm	9.21kg	±6µm	1.3µm	17µm or less
105-413	—	Metric	1500-1600mm	0.01mm	10.17kg	±6µm	1.3µm	18µm or less
105-414	—	Metric	1600-1700mm	0.01mm	11.13kg	±6µm	1.3µm	19µm or less
105-415	—	Metric	1700-1800mm	0.01mm	12.09kg	±6µm	1.3µm	20µm or less
105-416	—	Metric	1800-1900mm	0.01mm	13.05kg	±6µm	1.3µm	21µm or less
105-417	—	Metric	1900-2000mm	0.01mm	14.01kg	±6µm	1.3µm	22µm or less
105-418	—	Metric	1000-1200mm	0.01mm	13.77kg	±6µm	1.3µm	14µm or less
105-419	—	Metric	1200-1400mm	0.01mm	15.77kg	±6µm	1.3µm	16µm or less
105-420	—	Metric	1400-1600mm	0.01mm	17.91kg	±6µm	1.3µm	18µm or less
105-421	—	Metric	1600-1800mm	0.01mm	20.8kg	±6µm	1.3µm	20µm or less
105-422	—	Metric	1800-2000mm	0.01mm	22.76kg	±6µm	1.3µm	22µm or less
105-428	—	Inch	40-44″	0.001″	10kg	±0.0003″	—	0.00060″ or less
105-429	—	Inch	44-48″	0.001″	10.9kg	±0.0003″	—	0.00064″ or less
105-430	—	Inch	48-52″	0.001″	11.4kg	±0.0003″	—	0.00068″ or less
105-431	—	Inch	52-56″	0.001″	11.9kg	±0.0003″	—	0.00072″ or less
105-432	—	Inch	56-60″	0.001″	12.6kg	±0.0003″	—	0.00076″ or less
105-433	—	Inch	60-64″	0.001″	13.2kg	±0.0003″	—	0.00080″ or less
105-434	—	Inch	64-68″	0.001″	14.1kg	±0.0003″	—	0.00084″ or less
105-435	—	Inch	68-72″	0.001″	14.9kg	±0.0003″	—	0.00088″ or less
105-436	—	Inch	72-76″	0.001″	15.8kg	±0.0003″	—	0.00092″ or less
105-437	—	Inch	76-80″	0.001″	16.7kg	±0.0003″	—	0.00096″ or less

105-103
105-104
105-105
105-106
105-107
105-408
105-409
105-410
105-411
105-412
105-413
105-414
105-415
105-416
105-417
105-418
105-419
105-420
105-421
105-422
105-428
105-429
105-430
105-431
105-432
105-433
105-434
105-435
105-436
105-437

Технические характеристики

Technology:	Mechanical
SPC Output:	No
Ratchet/Thimble:	Ratchet Stop
Measuring Faces:	Carbide tipped
