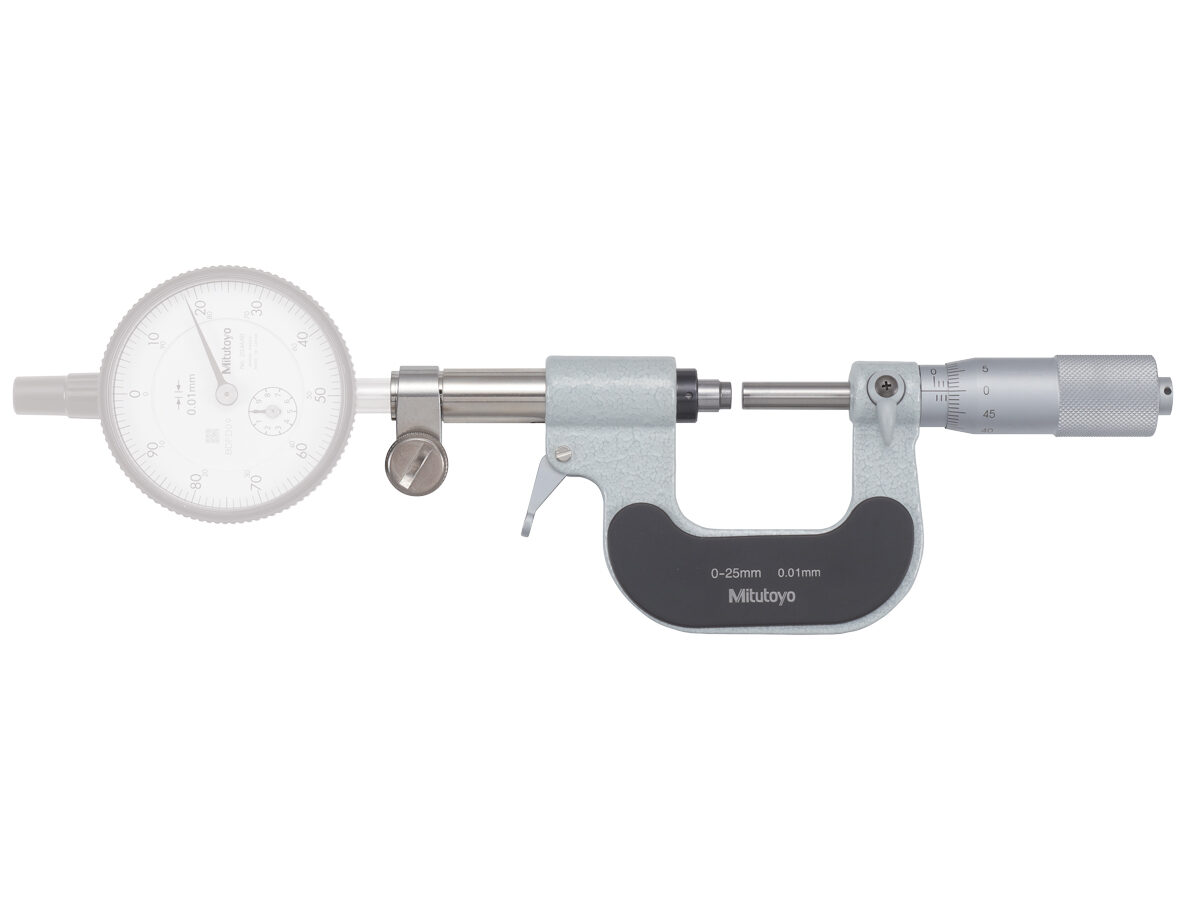

The Mitutoyo outside micrometer with a retracting anvil trigger offers faster spindle retraction to a set measurement, while increasing throughput accuracy. A hardened steel sleeve securely holds a dial indicator for almost instant GO/NO-GO judgments on parts or workpieces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- A precision machined spring provides smooth and easy anvil trigger operation
- Scale is laser etched on thimble for easier reading
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Includes a standard bar except for 0-25mm models
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Range: | Mass: | Parallelism: | |
|---|
| 107-201 | — | 0-25mm | 480g | 2µm or less |
| 107-202 | — | 25-50mm | 520g | 2µm or less |
| 107-203 | — | 50-75mm | 585g | 2µm or less |
| 107-204 | — | 75-100mm | 630g | 3µm or less |
| 107-205 | — | 100-125mm | 725g | 3µm or less |
| 107-206 | — | 125-150mm | 810g | 3µm or less |
| 107-207 |  | 150-175mm | 1050g | 3µm or less |
| 107-208 | — | 175-200mm | 1170g | 4µm or less |
| 107-201 |
| 107-202 |
| 107-203 |
| 107-204 |
| 107-205 |
| 107-206 |
| 107-207 |
| 107-208 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Accuracy: | ±3µm |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Plain Thimble |
|---|
| Graduation: | 0.01mm |
|---|
| Flatness: | 0.6µm |
|---|
| Measuring Faces: | Carbide tipped |
|---|
