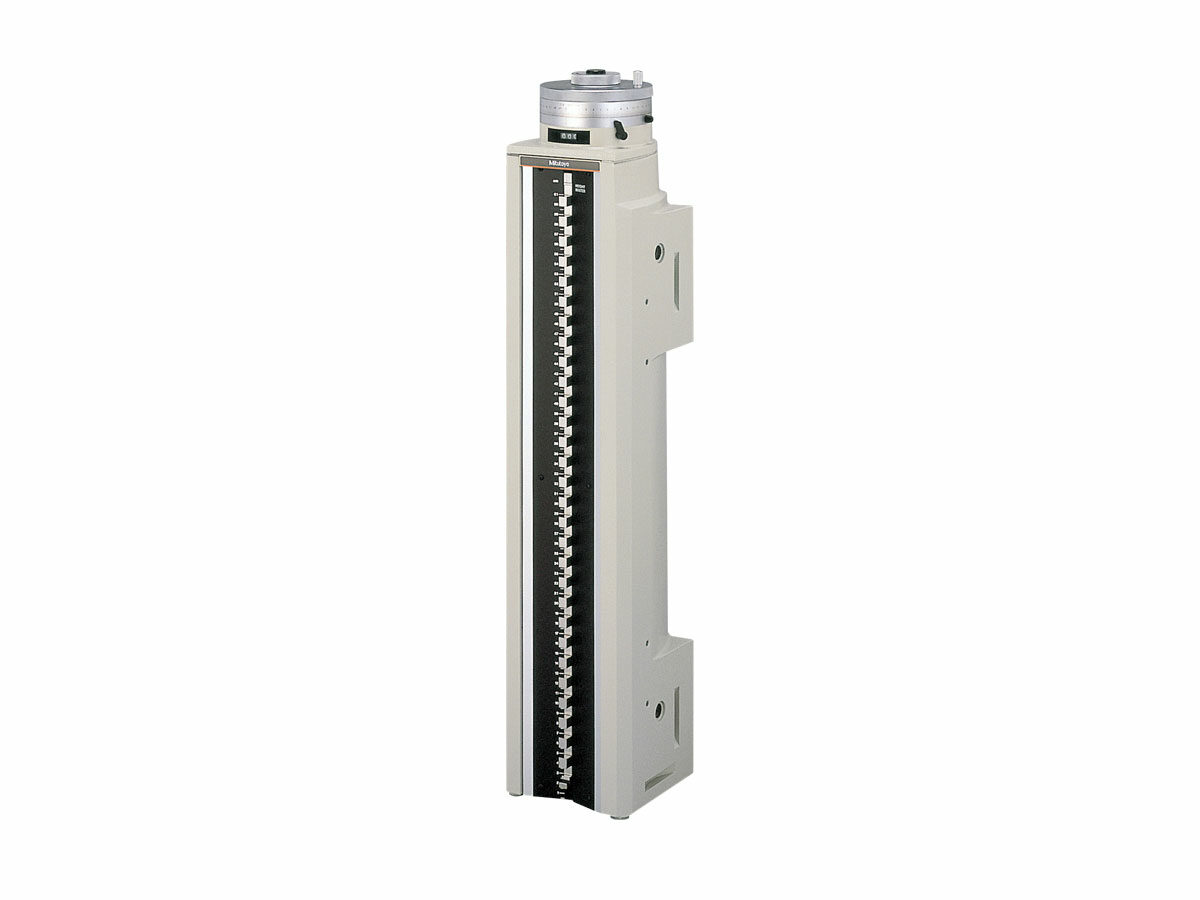

The Mitutoyo Universal Height Master provides highly accurate height calibration references in vertical or horizontal orientations, which is useful in a wide range of applications. The Universal Height Master also features a speed dial type micrometer head with fine adjustment graduated to 0.00001” for height setting, and the reference blocks are stacked straight for precise alignment. The final confirmation measurement is the sum of the measuring block position, the counter value and the micrometer head reading.
- Suitable for use in either vertical or horizontal positions
- Available in Metric and Inch
- Available in different range of confirmation measurements
- Straight block step: 10mm/.5”
- Straight block stack arrangement ensures precision alignment
- Counter tracks the number of micrometer head turns
- Supplied with a gage block for zero setting
- Cast iron housing provides stable height measurement, long service life
- Includes Certificate of Accuracy in accordance with NIST
- Supplied in a fitted wooden case
| Order No.: | Product Image: | Units: | Range: | Block Step: | Block pitch accuracy: | Parallelism of Blocks: | Micrometer Head Accuracy: | Mass: | Graduation: | Resolution: | Character Height: | Mic head travel: | Pitch Per Revolution: | Hysteresis: | Optional Accessories: | |
|---|
| 515-510 |  | Inch | .2 — 24.2″ | .5″ | ±.0001″ | .00006″ | ±.00004″ | 50kg | .00001″ | .001″ | .16″ | 1″ | .025″ | 0.00004 — 24.2″ | — |
| 515-512 | — | Inch | .2 — 18.2″ | .5″ | ±.00005″ | .00006″ | ±.00004″ | 42kg | .00001″ | .001″ | .16″ | 1″ | .025″ | 0.00004 — 24.2″ | — |
| 515-513 | — | Inch | .2 — 40.2″ | .5″ | ±.00015″ | .00008″ | ±.00006″ | 63.5kg | .00001″ | .001″ | .16″ | 1″ | .025″ | 0.00006 — 40.2″ | — |
| 515-520 | — | Metric | 5 — 610mm | 10mm | ±(1.5)µm | 1µm | ±1.2µm | 42kg | 0.001mm | 0.01mm | 4mm | 20mm | 0.5mm | 1.2 — 610µm | — |
| 515-523 | — | Metric | 5 — 1010mm | 10mm | ±(3.5)µm | 2.5µm | ±1.5µm | 63.5kg | 0.001mm | 0.01mm | 4mm | 20mm | 0.5mm | 1.5 — 1010µm | — |
| 515-510 |
| 515-512 |
| 515-513 |
| 515-520 |
| 515-523 |
Технические характеристики
| Block step type: | Straight |
|---|
| Provided with Inspection Certificate: | Yes |
|---|
