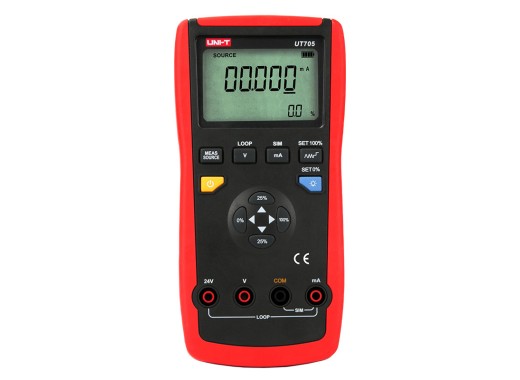

This UNI-T UT705 single function loop generator generates a 4 — 20 mA loop current and is mainly used to calibrate sensors to ensure industrial safety, efficiency and productivity. Moreover, the UT705 has DC voltage/current and loop current measurements functions with button settings, selectable steps and ramp outputs to work more efficiently and accurately. Furtermore, features of this calibrator include LCD backlight, auto power off and the fact that this device can be safely dropped from a 1 meter height.
Specifications DC voltage range 0 — 30 V (±(0.02 + 2)) DC current range (measure and source) 0 — 24.000 mA (±(0.02 + 2)) Loop current 0 — 24.000 mA (±(0.02 + 2)) Power supply 9V battery (6F22) Features Loop power function Voltage: 24 V
Accuracy: 10% Ramp functions Source functions: voltage, resistance, temperature
Ramps: slow ramp, fast ramp, 25% step-ramp Step functions Source functions: voltage, resistance, temperature
Steps: 25% of range, 100% of range Display 63 mm x 40 mm Dimensions96 x 193 x 47 mm Weight410 g Accessories
The UT705 comes by default with:
- Test leads
- 9 V battery
- Alligator clip
