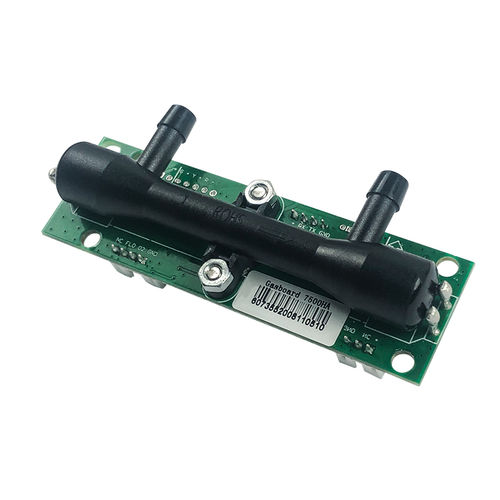

Cubic ultrasonic oxygen sensors Gasboard-7500HA can realize accurate and stable measurements for oxygen concentration and flow rate. By adopting ultrasonic detecting technology and principle of TOF (time of flight) measurement , Gasboard-7500HA sensors have great performances: excellent stability, high accuracy, fast response, continuous monitoring, no drift, no need routine calibration, maintenance-free, etc.. Gasboard-7500HA sensors are widely used for PSA oxygen generator, medical ventilator, respiratory device, anesthetic machine and vaporizer. Features: · Ultrasonic measurement technology, for both oxygen concentration and flow rate · Excellent stability, high accuracy, fast response · Full scale matrix temperature compensation · No-consuming parts, long Lifespan · Small size, flexible installation · High performance-cost-ratio · Support serial port and analog output accurate measurements · Enhanced EMC performance · RoHS, REACH, CMC, CE certificated Specifications Detect Principle: Ultrasonic Technology Detection Range: O2 Concentration: 20.5%-95.6%,O2 Flow Rate: 0~10L/min Detection Accuracy: O2 Concentration: ±1.5%FS @(5~45)℃, O2 Flow Rate: ±0.2L/min@(5~45)℃ Resolution: O2 Concentration: 0.1%,O2 Flow Rate: 0.1L/min Response Time: O2 Concentration:
Технические характеристики
CharacteristicsTechnologyultrasonicOutputpercent level, analogOther characteristicslong-life, for hygienic applications, for medical applications, with gas flow sensor, real-time
