The tinySA ultra is a handheld 1kHz — 6 GHz spectrum analyser which is designed, developed and now sold from Eindhoven, The Netherlands. The tinySA ultra is a follow-up to the tinySA. The differences between these two spectrum analysers are described in the model overview below. Moreover, this device comes with a 4.0-inch resistive touch color display which shows the full frequency range in 450 scan points, and has a rechargeable battery included for up to two hours of portable use. Furthermore, the analyser features two different modes: normal mode and ultra mode. Additionally, the tinySA ultra has many built-in configuration options such as a switchable bandpass filter and a low-input step attenuator. It’s important to keep in mind that the maximum input level of the tinySA is +6 dBm. If you’re unsure about the input level of your signal, it’s recommended to use an attenuator to be on the safe side.
When the tinySA ultra is not used as a spectrum analyser, it can be also used as a signal generator to output sine or square waves.
The analyser can be fully controlled by a PC through a USB cable. It also features an automatic self-test and self-calibration through the built-in signal generator.
The tinySA and tinySA ultra developer has set up a very extensive wiki page with all necessary information, manuals, operating limits, and explanations. This wiki can be found here.
We sell the original version, be aware of many clones in the market!
Model overview Model tinySA tinySA ultra Display Resistive touch, 2.8′, 320×240 pixels Resistive touch, 4.0′, 480×320 pixels Modes Low input, High input, Low output, High output Normal mode, Ultra mode Displayed point per scan Max 290 Max 450 SD card slot Not available Micro SD card Audio output Not available 3.5 mm headphone plug Price 60 €60.00 Excl. VAT 150 €150.00 Excl. VAT Specifications Power supply5V USB (1.3 A Max) Battery operation2 hours operation if fully charged ESD protection Yes Spectrum analyser Frequency range100 kHz — 800 MHz (normal mode)
100kHz — 6GHz (ultra mode) Absolute maximum input level+6dBm with 0dB internal attenuation Input impedance50 (input attenuation > 10dB) Compression point1dB at -1dBm with 0dB internal attenuation Phase noise-90db/Hz at 100kHz offset, and -115dB/Hz at 1MHz offset Dynamic rangeSpur free when using 30kHz RBW of 70dB Absolute Power level accuracy+/- 2dB (after calibration) Resolution filtersManual (0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz), or automatic Signal generator Frequency rangeSine wave output: 100kHz — 800MHz
Square wave output: up to 4.4 GHz when not used as a spectrum analyser ShapeSine wave Harmonicsbelow -40dB of fundamental from 100kHz — 800 MHz FunctionalitiesAM, narrow FM and wide FM modulation Level accuracy+/- 2dB up to 800Mhz between -72dBm and -18dBm, less accuracy below -72dBm Output frequency resolution44Hz below 800 MHz Reference generator FrequencyCan be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz. ShapeSquare wave with fundamental at -35.6dBm connected to cal output Accessories

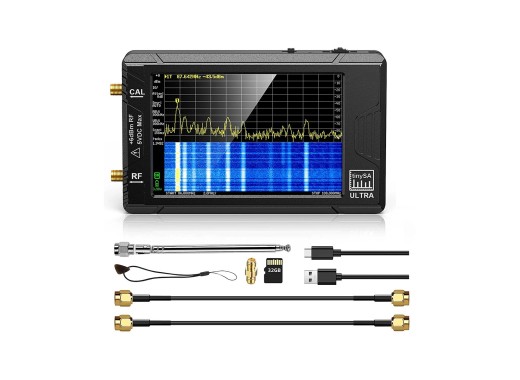

The tinySA ultra includes:
- TinySA ultra spectrum analyser
- Two SMA connection cables
- Barrel connector
- Antenna with SMA connector
- USB-C charging cable
Support The TinySA ultra is an open-source product with support from the community. Most questions are answered in the Wiki, for further problems you can go here. By default, the ultra mode is disabled, but the ultra mode can be enabled by following the instructions described on the Wiki. Therefore we do not provide technical support on the TinySA ultra. Warranty on the hardware is of course provided by Eleshop.
