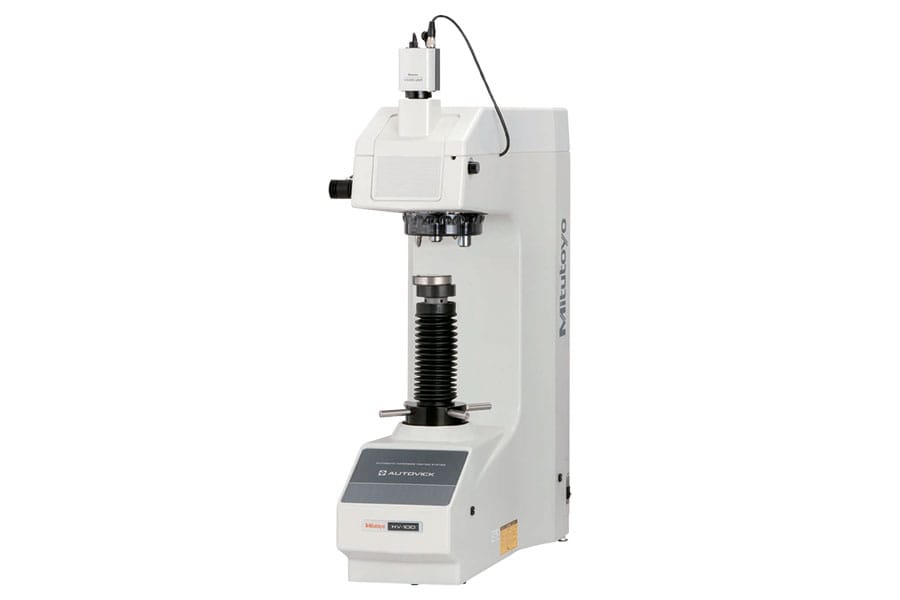

The Mitutoyo HM-210/220 Type B unit utilizes AVPAK10, a software package that automatically measures the diagonal length of an indentation and calculates the corresponding hardness value. This eliminates the measurement error caused by variation in operator interpretation to reduce costs.
- Integrated vision unit comprised of a 3 million pixel, color USB camera
- AVPAK software supports control, testing and report creation related to hardness testing as well as parameter settings and automatic measurement
- Optional measuring microscope enables magnified observation and measurement of indentations
- Automatic turret mechanism can manually or automatically change the positions the indenter and objective lens
- The electromagnetic force motor in the loading mechanism enables the test force to be freely selected over the wide range of 0.4903mN to 19610mN (0.05gf to 2 kgf)
- Ability to freely set load dwell times delivers control over indentation size
- The long working distance objectives enable a comfortable working distance between the objective and the specimen surface reducing the possibility of collision between the specimen and the objective during focusing operations
- Manual VY stage unit with digital micrometer head digitally displays positional information during test-site positioning
- V/K models utilize both Vickers and Knoop indenters
| Order No.: | Product Image: | Model: | Force Range: | Loading Rate: | Included Lenses: |
|---|
| Order No.: |
|---|
| 64AAB323P | — | HM-210 Type B | 10, 20, 30, 50, 100, 200, 300, 500, 1000, User Choice gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice N | 60µ/sec | 10X, 50X |
| 64AAB324P | — | HM-210 Type B V/K | 10, 20, 30, 50, 100, 200, 300, 500, 1000, User Choice gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice N | 60µ/sec | 10X, 50X, 20X |
| 64AAB325P | — | HM-220 Type B | 10, 20, 30, 50, 100, 200, 300, 500, 1000, User Choice, .05, .1, .2, .3, .5, 2000 gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice, 0.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61, 29.42, 49.03, 19610 N | 60µ/sec , Variable between 2 and 60µm ≤ 30 gf | 10X, 50, 100X |
| 64AAB326P | — | HM-220 Type B V/K | 10, 20, 30, 50, 100, 200, 300, 500, 1000, User Choice, .05, .1, .2, .3, .5, 2000 gf / 98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942, 4903, 9807, User Choice, 0.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61, 29.42, 49.03, 19610 N | 60µ/sec , Variable between 2 and 60µm ≤ 30 gf | 10X, 50X, 100X |
| 64AAB323P |
| 64AAB324P |
| 64AAB325P |
| 64AAB326P |
Технические характеристики
| Technology: | Electro Mechanical Force |
|---|---|
| Measuring Method: | Optical- Type B-Automatic-PC |
| Focus: | Manual |
| Focus Type: | Manual |
| Display: | Color LCD Touch Screen |
| Max Sample Height: | 133mm |
| Max Sample Depth: | 160mm |
| Mass: | 43kg |
| Required Accessories: | — |
