Цифровой микрометр

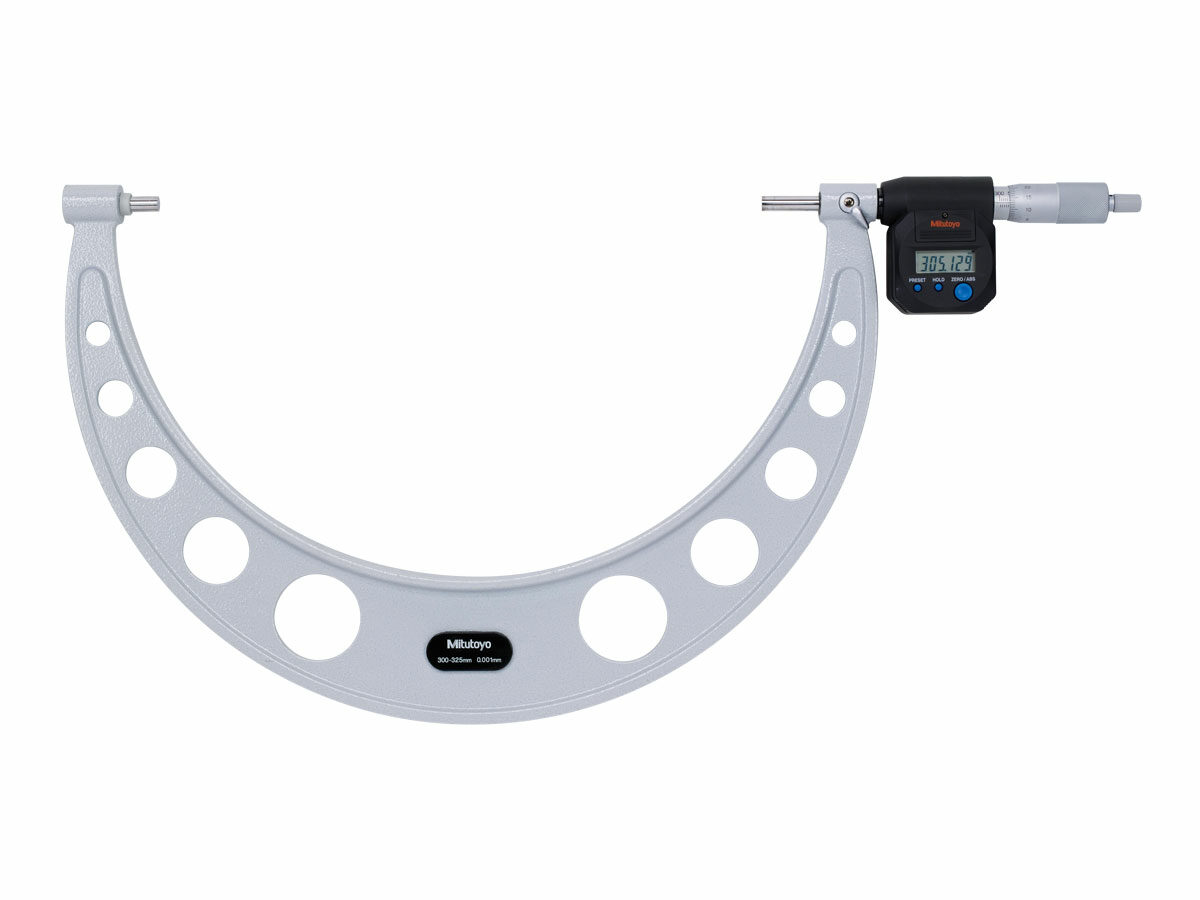

Микрометр Mitutoyo Digimatic с большим диапазоном измерений производит высокоточные воспроизводимые измерения, отображаемые на легко читаемом ЖК-дисплее.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Mitutoyo Digimatic digital micrometer»s ratchet thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring a wide range of different dimensions, or easier one-handed measurements.

  • Ranges from 12-20” / 300-500mm
  • Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
  • Measurement results are displayed in inches and metric on an LCD readout
  • Carbide-tipped measuring tips resist wear for better accuracy over time
  • Twice as long battery life than previous models improves throughput and efficiency
  • Auto power ON/OFF function saves battery life makes for easier use
  • Functions include preset, zero-setting, power ON/OFF, data hold, data output and inch/mm conversions (inch/mm models only)

Order No.:Product Image:Units:Range:Resolution:Accuracy:Mass:Flatness:Parallelism:

Order No.:

293-582Metric300-325mm0.001mm±6µm2000g0.6µm5µm or less
293-583Metric325-350mm0.001mm±6µm2150g0.6µm5µm or less
293-584Metric350-375mm0.001mm±6µm2300g0.6µm5µm or less
293-585Metric375-400mm0.001mm±7µm2450g0.6µm6µm or less
293-586Metric400-425mm0.001mm±7µm2600g0.6µm6µm or less
293-587Metric425-450mm0.001mm±7µm2750g0.6µm6µm or less
293-588Metric450-475mm0.001mm±8µm2900g0.6µm6µm or less
293-589Metric475-500mm0.001mm±8µm3100g0.6µm7µm or less
293-782Metric, Inch12-13″ / 304.8-330.2mm0.0001″ / 0.001mm±.0003″2000g0.6µm0.00020″ or less / 5µm or less
293-783Metric, Inch13-14″ / 330.2-355.6mm0.0001″ / 0.001mm±.0003″2150g0.6µm0.00020″ or less / 5µm or less
293-784Metric, Inch14-15″ / 355.6-381mm0.0001″ / 0.001mm±.0003″2300g0.6µm0.00020″ or less / 5µm or less
293-785Metric, Inch15-16″ / 381-406.4mm0.0001″ / 0.001mm±.00035″2450g0.6µm0.00024″ or less / 6µm or less
293-786Metric, Inch16-17″ / 406.4-431.8mm0.0001″ / 0.001mm±.00035″2600g0.6µm0.00024″ or less / 6µm or less
293-787Metric, Inch17-18″ / 431.8-457.2mm0.0001″ / 0.001mm±.00035″2750g0.6µm0.00024″ or less / 6µm or less
293-788Metric, Inch18-19″ / 457.2-482.6mm0.0001″ / 0.001mm±.0004″2900g0.6µm0.00024″ or less / 6µm or less
293-789Metric, Inch19-20″ / 482.6-508mm0.0001″ / 0.001mm±.0004″3100g0.6µm0.00028″ or less / 7µm or less

293-582
293-583
293-584
293-585
293-586
293-587
293-588
293-589
293-782
293-783
293-784
293-785
293-786
293-787
293-788
293-789

Технические характеристики

Technology:Digimatic
SPC Output:Yes
Ratchet/Thimble:Ratchet Stop
Measuring Force:10-14N
Measuring Faces:Carbide tip
Display:LCD
Battery:SR44 (2pcs.) 938882
Battery Life:Approx. 1.8 years under normal use
Optional Accessories:04AZB512, 04AZB513, 959149, 959150
