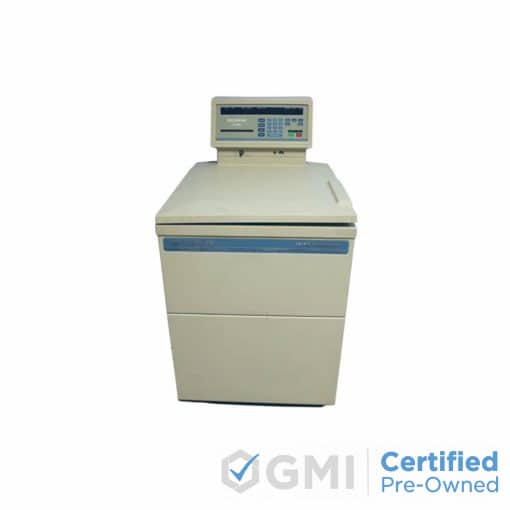

Product Description The Beckman J2-MI Centrifuge is a refrigerated floor-model system designed for general laboratory use. The unit employs an innovative microprocessor-controlled system for optimal accuracy and user convenience. Moreover, the system is equipped with a brushless induction motor for low maintenance, as well an advanced digital display capable of indicating actual rotor speed and temperature, run time remaining or elapsed, program number, and accel/decel rates. Engineered to protect both sample and rotor, the J2-MI centrifuge offers automatic rotor deceleration in situations where abnormalities are detected. An alert message will be displayed to signal the condition. This allows the user to diagnose the problem and restart the run. Other notable features of the Beckman J2-MI refrigerated centrifuge include reliable touch switches, 10 program memories, automatic temperature control, and automatic maximum speed limits. Technical Specifications Height 940 mm (37 in) to chamber door, 1270 mm (50 in) to top of control panel, 1600 mm (63 in) with door open Width 711 mm (28 in) Depth 838 mm (33 in) Weight (uncrated) 298 kg (656 lbs.) Rotor Identity Used to limit speed to rotor maximum and provide automatic temperature control Speed Range 100 to 21,000 rpm Speed Control Actual rotor speed will be within 20 rpm of the set speed Speed Display Digital readout indicates actual rotor speed in revolutions per minute in 10-rpm increments and four significant figures Time Range 0 to 99 hours 59.9 minutes for timed runs, entries greater than 99 h 59.9 min signal hold or continuous operation Time Display Digital readout indicates time remaining for timed runs, time elapsed for continuous operation Temperature Range -20 to +40C Temperature Control ±,2 for temperatures of 0 to ambient. Temperature control at higher or lower temperatures depends on the rotor and speed used Temperature Display Digital readouts indicates rotor temperature in degrees Celsius in 1-degree increments Acceleration Select from 9 acceleration rates, or maximum acceleration Deceleration Select from 9 deceleration rates, maximum dynamic braking, or a coasting stop from full speed Operating Modes Key switch selects NORMAL, ZONAL, or PROGRAM LOCK operating modes Electrical Requirements 60-Hz, 208/240 Vac nominal power | 50-Hz, 220 Vac nominal power If you are interested in the Beckman J2 Series Centrifuge be sure to check out the following variations Beckman J2-21 Floor Model Centrifuge Beckman J2-21M High Speed Centrifuge Beckman J2-HC High Capacity Centrifuge Beckman J2-HS High Speed Centrifuge Beckman J2 MC High Speed Centrifuge Beckman J2-MI High Speed Centrifuge
Технические характеристики
Technical Specifications
| Height | 940 mm (37 in) to chamber door, 1270 mm (50 in) to top of control panel, 1600 mm (63 in) with door open |
| Width | 711 mm (28 in) |
| Depth | 838 mm (33 in) |
| Weight (uncrated) | 298 kg (656 lbs.) |
| Rotor Identity | Used to limit speed to rotor maximum and provide automatic temperature control |
| Speed Range | 100 to 21,000 rpm |
| Speed Control | Actual rotor speed will be within 20 rpm of the set speed |
| Speed Display | Digital readout indicates actual rotor speed in revolutions per minute in 10-rpm increments and four significant figures |
| Time Range | 0 to 99 hours 59.9 minutes for timed runs, entries greater than 99 h 59.9 min signal “hold” or continuous operation |
| Time Display | Digital readout indicates time remaining for timed runs, time elapsed for continuous operation |
| Temperature Range | -20˚ to +40˚C |
| Temperature Control | ±2˚ for temperatures of 0˚ to ambient. Temperature control at higher or lower temperatures depends on the rotor and speed used |
| Temperature Display | Digital readouts indicates rotor temperature in degrees Celsius in 1-degree increments |
| Acceleration | Select from 9 acceleration rates, or maximum acceleration |
| Deceleration | Select from 9 deceleration rates, maximum dynamic braking, or a coasting stop from full speed |
| Operating Modes | Key switch selects NORMAL, ZONAL, or PROGRAM LOCK operating modes |
| Electrical Requirements | 60-Hz, 208/240 Vac nominal power | 50-Hz, 220 Vac nominal power |
