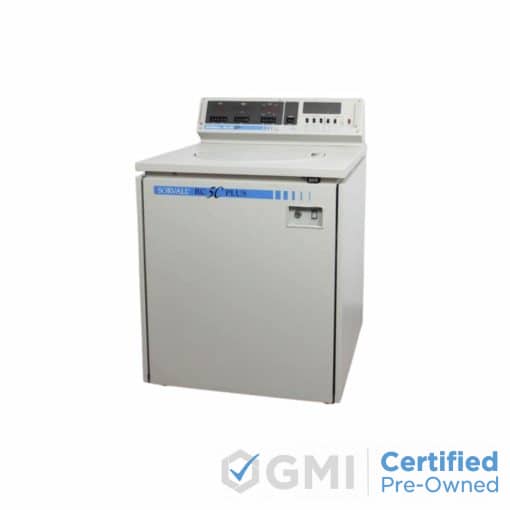

Product Description The Sorvall RC-5C Plus Superspeed Centrifuge is designed to separate substances of varying densities at a controlled temperature range. Using state-of-the-art centrifugation technology, the RC-5C Plus offers superior functionality, durability, and simplicity of operation. Its strategic combination of outstanding features guarantees high quality intensive separations in the minimum amount of time possible. Equipped with a Relative Centrifugal Force (RCF) calculator, the RC-5C Plus allows the user to calculate the RCF before a run, and display it anytime during the run period. This Sorvall centrifuge employs an integrator that can be used as a control or as a display, or even both. The RC-5C Plus system also makes use of a refrigeration system powered by SUVA refrigeranta Kendro-manufactured CFC-replacement coolant. Additionally, the system employs an automatic temperature compensation system and an automatic rate-controlled slow start and slow stop. Run conditions on the Sorvall RC-5C Plus centrifuge are selected using the front control panel, while actual run conditions are shown in real-time by easy-to-read displays. To avoid centrifuge malfunction, the built-in microcomputer automatically performs self-test routines once the centrifuge is started. Call us today to learn more about the Sorvall RC-5C Plus Superspeed Centrifuge
Технические характеристики
Technical Specifications
| Dimensions (H x W x D) | 114 cm x 76 cm x 99 cm (45 in. x 30 in. x 39 in.) |
| Speed Selection Range | 50 to 21,000 |
| Speed Control Accuracy | ± 1% or 100 rpm, whichever is greater |
| Maximum Relative Centrifugal Force | 51,070 g |
| Temperature Selection Range | -20 to 40° C |
| Temperature Control Range | +2 to =40°C |
| Temperature Control Accuracy | ±1° C |
| Run Time Selection Range | 0 to 99 hr, 59 min or Hold |
| Ambient Temperature Range | +15 to +38°C |
| Mass (Weight) | 308 kg (680 lbs) |
| Electrical Requirements | |
|---|---|
| Input Power (polyphase, 30 A) | 220 V, 50 Hz |
| Input Power (single phase, 30 A) | 240 V, 50 Hz 230 V, 60 Hz 220 V, 50 Hz 208 V, 60 Hz 200 V, 60 Hz |
| Noise Level | |
| Heat Output | 4 kW (13,500 Btu/h) |
