Description

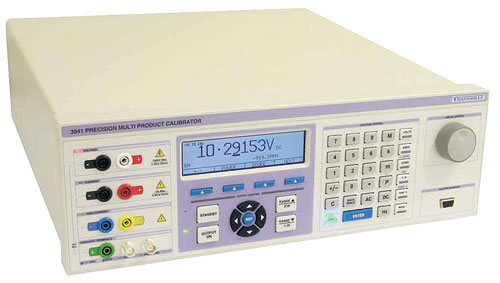

The Transmille 3000 series calibration system is designed to perform a wide range of calibration work quickly, accurately and economically. Meeting the needs of today’s quality systems, including ISO9000 / ISO17025, require calibration traceable to national standards of a wide range of instrumentation. The Transmille 3000 series calibration system provides the ideal platform to cover these calibration requirements, whether in the laboratory or on site. Every Transmille calibrator is supplied with UKAS calibration traceable to National standards and are ready to use out of the box.
The unique concept of external calibration adapters combined with built-in measurement capability dramatically extends the range of instruments that can be cost effectively calibrated. The Transmillle 3000 series generates all the outputs required for multimeter calibration, plus options for oscilloscope calibration, AC/DC power calibration, harmonics calibration, RCL meters and frequency meters. Using the external calibration adapters, power supplies, process control calibrators, electrometers, insulation testers, pressure gauges and transmitters and even torque screwdrivers can be calibrated quickly and efficiently.
The ultra portable Transmille 3000 series calibrators begin a new era in true on-site calibration. Using a soft, over the shoulder, tailored travel case the calibration system can be taken to the calibration work, whether it is in an aircraft hanger, on board a ship or oil rig.
The Transmille 3010 and 3041 calibrators are available in pre-configured ‘System’ models which include the following calibration modules and adapters: AC (SINE)/ DC power calibration module, PRT module, simulated resistance and capacitance module and thermocouple simulation adapter and CJC readback.
An integral component to the Transmille 3000 series calibration system is the software. ProCal, ProCal-Track and the 3000 Series Virtual Front Panel are easy to use software programs that can manage and automate laboratory and calibration tasks. The ProCal software is a networkable system that can be used for all types of instrumentation: electrical, temperature, pressure and dimensional etc. The ProCal software controls a wide range of instruments using a GPIB/RS232 interface, is offered in multiple languages and creates Crystal reports and custom certificates.
The ProCal-Track software integrates with the ProCal software to streamline laboratory operations. ProCal-Track features barcode scanning to efficiently manage incoming and outgoing instruments and accessories. ProCal-Track can create comprehensive forms, reports, labels, Crystal reports and custom certificates. The Virtual Front Panel software expands the functionality of the Transmille 3050 calibrator by allowing full control of all calibrator functions from a PC.
Технические характеристики
Features
- Calibrates: Multimeters, oscilloscopes, clamp meters, watt & power meters, RLC meters, AC bridges, power supplies, high resistance, data loggers
- DC voltage:
- Range: 0 to 1025 V
- Resolution: 10 nV (3010), 0.1 µV (3041)
- Accuracy: 8 ppm (3010), 25 ppm (3041)
- DC current:
- Range: 0 to 30 A
- Resolution: 10 pA (3010), 100 pA (3041)
- Accuracy: 50 ppm
- AC voltage:
- Range: 0 to 1020 V
- Resolution: 100 nV (3010), 1 µV (3041)
- Accuracy: 150 ppm (3010), 0.035% (3041)
- AC current:
- Range: 0 to 30 A
- Resolution: 100 pA (3010), 1 nA (3041)
- Accuracy: 0.04% (3010), 0.06% (3041)
- Includes UKAS Calibration Certificate
