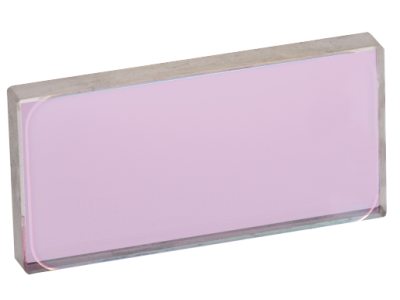

Тонкопленочный поляризатор, высокоэнергетический Nd:YAG, N-BK7, 14,3 x 28,6 мм, 532 нм Модель: 11B00HP.4

Технические характеристики

• Size 14.3 x 28.6 mm
• Wavelength Range 532 nm
• Angle of Incidence 56° ± 3°, angular tuning required
• Material Grade A N-BK7
• Clear Aperture Central elliptical area, major axis &ge, 22.9 mm, minor axis &ge, 11.4 mm
• Damage Threshold 5 MW/cm2 CW, 5 J/cm2 with 10 nsec pulses at 10 Hz @ 1064 nm
• Surface Quality 10-5 scratch-dig
• Surface Flatness &le,&lambda,/10 at 632.8 nm over the clear aperture

• Extinction Ratio 100:1
• Wedge &le,1 arc min
• Thickness 3.2 mm
• Thickness Tolerance ±0.25 mm
• Size Tolerance ±0.13 mm
• Efficiency Tp > 95%, Rs > 99%, at the design wavelength
• Cleaning See How to Clean Optics
