Features
- Dual displays permit simultaneous reading of amps and volts
- Measures AC Current to 600A and AC/DC Voltage to 600 V
- Measures frequency, capacitance to 3000 µF, and resistance to 40M?
- Measures temperature with K-type thermocouple probe
- Includes micro amps measurement for testing flame sensors
- Diode test quickly finds voltage drops
- Continuity beeper detects opens and shorts
- Auto ranging instantly selects correct range
- Hold and maximum reading functions
- New thin jaws, 5 mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
- Accommodates conductors up to 1.0″ (25 mm) in diameter
- Auto power off and low battery indication helps you make the most of battery life
- Rubber, over-molded case absorbs shock

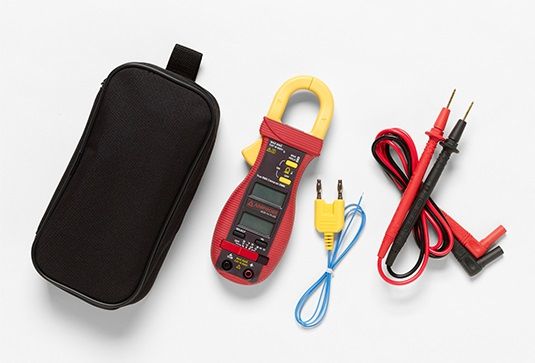

Accessories (Included)
- ACD-14 PLUS
- Test leads
- Battery (installed)
- Soft carrying pouch
- Type-K thermocouple with banana plug
Specifications
- AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
- DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- AC Current: 40.00 A, 400.0 A, 600 A
- Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
- Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
- Frequency: 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
- Temperature: -4 °F → 999 °F (-20 °C → 537 °C)
- Dual displays: Yes
- Micro Amps: Yes
- Accommodates conductors up to 1.0″ (25 mm) in diameter
The ACD-14 PLUS is a 600 V, 600 A clamp meter from Amprobe. The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 600 A |
| Volts | 600 V |
