Features
- Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
- Thin jaws, only 10mm (0.4″) thick make it easier to maneuver between tightly packed conductors
- Measures frequency, resistance, and capacitance
- Features continuity beeper to quickly find opens and shorts
- Accommodates conductors up to 1.0″ (25mm) in diameter
- Auto ranging saves time by instantly selecting correct range
- Auto power off to conserve battery life
- Rubber over-molded case absorbs shock
- Includes test leads, battery (installed), soft carrying pouch, and users manual
Accessories (Included)
- Test leads
- battery (installed)
- soft carrying pouch
- Users manual
Specifications
- AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600 V
- DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- AC Current: 40.00 A, 400.0 A, 600 A
- Resistance: 400.0 µΩ, 4.000 Ω, 40.00 Ω, 400.0 Ω, 4.000 MΩ, 40.00 MΩ
- Capacitance: 500.0 nF, 5.000 F, 50.00 CF, 500.0 µF, 3000 µF
- Frequency: 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
- Accommodates conductors up to 1.0″ (25 mm) in diameter

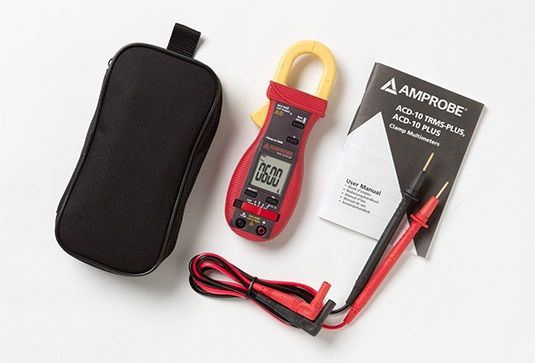

The ACD-10 PLUS is a 600 V, 600 A clamp meter from Amprobe. The Amprobe ACD-10 PLUS clamp multimeter has thinner jaws than standard digital clamp multimeters (only 0.4″/10mm thick) allowing access to tight measurement areas and still handles conductors up to 1.0 (25mm).
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 600 A |
| Volts | 600 V |
