Features
- Auto and manual ranging
- Relative zero mode
- Auto power off
- Data hold
- Carrying case included
- Large, easy to read LCD display
- Diode test
- Audible continuity
- Accommodates conductors up to 1.77″ (45 mm) in diameter
Accessories (Included)
- ACD-6 PRO
- Carrying case
- Batteries (installed)
Specifications
- DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
- AC Voltage: 600 V
- AC Current: 400.0 A, 1000 A
- Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
- Accommodates conductors: up to 1.77″ (45 mm) in diameter

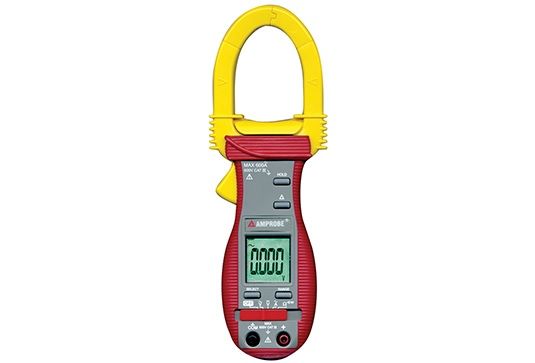

The ACD-6 PRO is a 600 V, 1 kA clamp meter from Amprobe. This high-current clamp doubles as a multimeter for AC and DC voltage, resistance and continuity. It is simple to operate and well-suited for high current applications.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 1 kA |
| Volts | 600 V |
