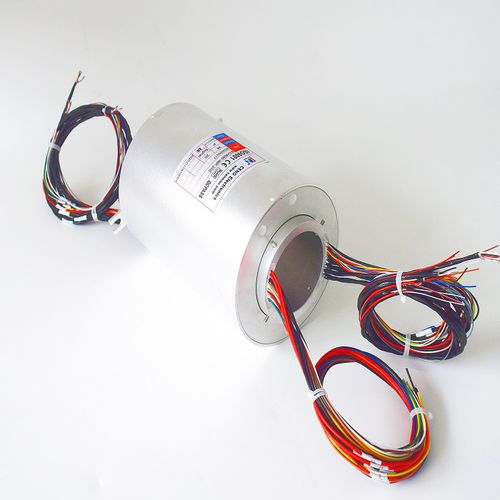

ECN080-36P-20S Encoder signal slip ring Inner hole size 80mm with 20 rings of Encoder signal ,it’s also integrate power lines .the inner bore size can be customized.CENO servo encoder slip ring specially designed for Panasonic, Mitsubishi, Siemens.It’s with stable performance,compact design, very reliable, years of on-site experience, no alarm, shutdown, etc.This type of slip ring is very popular, mainly used in various servo systems at home and abroad.typical application including automatic winding machine,lithium battery equipment,Industrial automation equipment. — Features Power integrate Encoder signal Hollow shaft installation Through bore 80mm Long service life Anti-jamming ,very low cost Applications Automatic winding machine Display equipment Lithium battery equipment Medical machine Radar system Turntable equipment Amusement equipment Optional Through hole size Current & ring numbers Signal type IP protection grade Contacts material Specification Circuits & Current 20*10A,4*16A,12*2A,1*PE,20*Servo encoder signal Voltage: 0~220VAC/VDC Electrical noise: Max 30mΩ (50rpm) Dielectric strength: ≥1000V@50Hz (power) ≥300V@50Hz (signal) Insulation resistance: ≥500MΩ@300VDC (power) ≥100MΩ@300VDC (signal) Operating speed: 0-100 rpm Contact material: Precious metal Housing material: Aluminium alloy IP protection grade: IP51 Installation: Shaft installation Through hole size: 80mm
Технические характеристики
CharacteristicsConstructionthrough-boreApplicationsfor packaging, for roboticsMaterialaluminum alloyOther characteristicscompact, high-performance, cost-effectiveVoltage
Max.: 220 V
Min.: 0 V
Primary current
2 A, 10 A, 16 A
Rotational speed
Max.: 100 rpm (628 rad.min-1)
Min.: 0 rpm (0 rad.min-1)
Number of channels
56 unit
