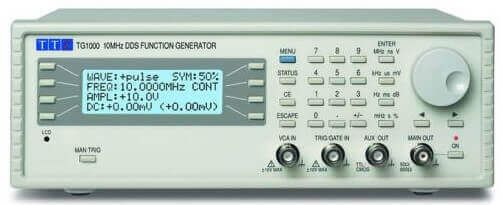

TG1000 Генератор функций Thurlby Thandar Instruments

Features:

• 0.001Hz to 10MHz/20MHz frequency range
• 6 digits or 1mHz resolution
• 1ppm stability and 10ppm one year accuracy
• Low distortion, high spectral purity sine waves
• Internal phase continuous sweep, lin or log
• AM, FSK, gated and tone switching modes
• 5mV to 20V pk-pk from 50 or 600 Ohms
• Storage for multiple instrument set-ups

Accessories:

• 2U Rack Mount for plastic cased bench instruments

Specifications:

• Frequency Range: 1mHz to 10MHz
• Resolution: 6 digits or 1mHz
• Accuracy: ±10ppm for 1 year, 18°C to 28°C, ±1mHz below 0.2Hz
• Tempco: Typically &lt,1ppm/°C outside of 18°C to 28°C

The TG1000 breaks new ground by offering a high quality DDS function generator at a significantly lower price. DDS (direct digital synthesis) is a technique for generating waveforms digitally using a phase accumulator, a look-up table and a DAC. The accuracy and stability of the resulting waveforms is related to that of the crystal master clock.

Технические характеристики
