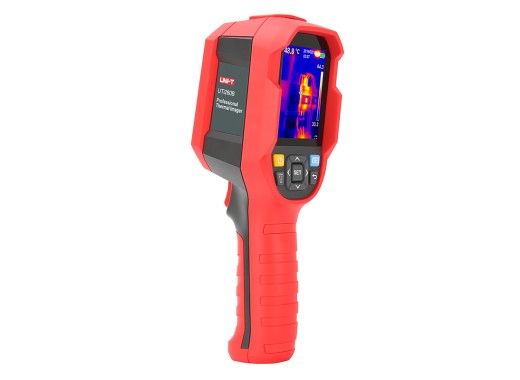

This affordable and very popular thermal imaging camera from UNI-T is a true hit with international bloggers. Especially because of the high resolution (256×192) and big temperature range (-20 to 550 degrees Celsius).
Although this camera is an excellent choice, we recommend to consider the PC210 which outperforms the UTi260B for a similar price. Specifications Range-15 to 550 °C Accuracy±2 °C or ±2% (whichever is greater) Focal distanceMin. 30 cm Response time40 ms Spot measurementCenter, 3 areas (max/min), auto spot tracking, alarm IR resolution256 x 192 (49152 pixels) NETD60 mK Detector typeVOX Focal plane array (FPA) Screen2,8 inch (320 × 240 pixels) BatteryUp to 6 hours Charge time0-100% in 5 hours Dimensions236 × 86 × 76mm (HxWxD) Net weight0.910kg
Optionally, you can purchase the macro lens which makes it possible to focus on small parts, like electronic boards.
Accessories
The UTi260B includes
- Gift box
- USB-A to USB-C cable
- 16 GB MicroSD card
- Quick start guide
- Windows software (via download link)
