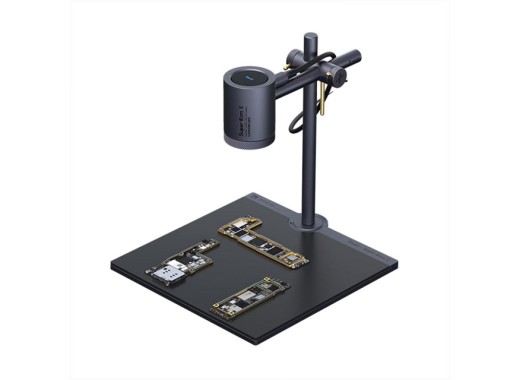

The Qianli Super Cam X is an IR camera specifically designed for detecting thermal hot-spots on small PCBs.
The feed is visible by hooking up the camera to a Windows host via USB-C, then installing the dedicated software thats downloadable on the bottom of this product page. From within the application you can perform plenty of operations, amongst others automatically adjusting contrast, calculating temperature curves and exporting footage to JPG or MP4.
Devices to be inspected can be placed onto the anti-static heat resistant mat on the base. However, its camera unit can be detached and mounted onto a regular camera stand, which allows monitoring devices without using the base as well. Specifications Temperature measurement range-20℃ — 120℃ Thermal resolution260 x 200 px (52k) Camera angle42° x 32° Display modeinfrared Heat measurement distance2 mm up to ∞ Sample comparison Yes 3D thermal field distribution Yes Regional temperature curve calculation Yes ConnectivityUSB-C Temperature accuracy ± 5°C or ± 5% Other features high temp alert Detector type Uncooled vanadium oxide (VOx) detector Image output resolution 640 x 480 px Output filetype MP4, JPG Input voltage 5 V Power consumption 250 mW peak Weight 435 g Accessories
The Super Cam X comes by default with:
- Base
- Base bracket
- Allen wrench
- USB-C cable
The camera stand in the last photo is for illustration purposes only.
