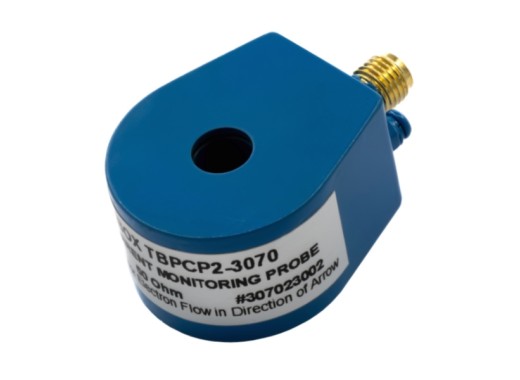

The Tekbox TBPCP2-3070 is a RF pulse monitoring probe typically used for surge or RF pulse current monitoring in the time domain, in contary to RF current monitoring probes designed for EMC applications that are used for measurements in the frequency domain. The probe has a characterised frequency range of 1 Hz to 200 MHz and a very flat response with a 3 dB bandwidth from 30 Hz to 70 MHz. The aperture of the RF current monitoring probe is 5.5 mm and it has a transfer impedance of -26 dB .
For a calibrator that is suitible with the TBPCP2-3070 RF pulse monitoring probe, see the TBPCP2-CAL.
Model overview
We offer two current monitoring probes in the TBPCP series, which differ in bandwidth, transfer impedance and aperture diameter. ModelTBPCP1-20100 TBPCP2-3070 3 dB bandwidth 20 Hz — 100 MHz 30 Hz — 70 MHz Transfer impedance -20 dB -26 dB Aperture diameter 25 mm 5.5 mm Connector N female SMA female Price 987.6 €987.60 Excl. VAT 987.6 €987.60 Excl. VAT Specifications Frequency range1 Hz — 200 MHz Max. primary current (AC)40 A Max. primary current (single pulse)200 A (at 100 ms pulse)
400 A (at 1 ms pulse) Outside diameter27 mm Height19 mm Weight60 g
