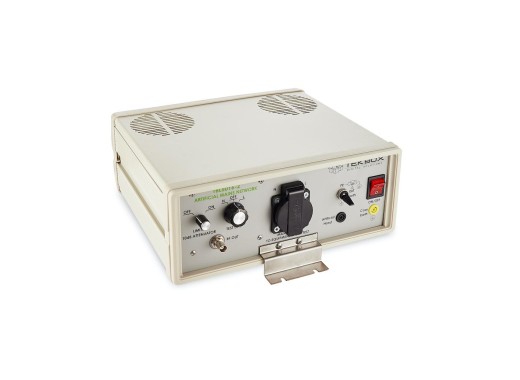

The TBL5016-2 from Tekbox is a Line Impedance Stabilization Network made for measuring line-conducted interference in EMC pre-compliance tests in the frequency range of 9 kHz — 30 MHz, which is within the CISPR16 standard. This LISN is designed for testing single phase AC-powered equipment with voltages up to 240 V and current up to 16 A. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection. Specifications Frequency range9 kHz — 30 MHz Max. voltage240 V / 50-60 Hz (CAT II) Max. current16 A Impedance50 Ω ║ (50 µH + 5 Ω) Artificial hand220 pF + 511 Ω Limiter/Attenuator150 kHz to 30 MHz, 10 dB Connectivity50 Ω BNC Accessories
The Tekbox TBL5016-2 comes delivered with:
- Power cable
- BNC-male to N-male coaxial cable (75 cm)
