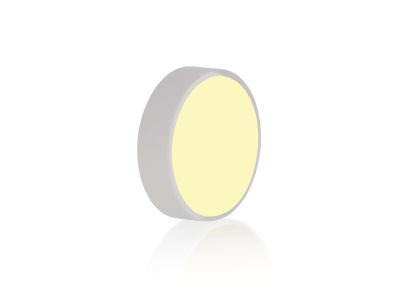

The FemtoOptics Ultrafast Mirror is 25.4 mm in diameter and 6.35 mm thickness, &lambda,/10 flatness, and 10-5 scratch-dig. Designed for 0 degrees angle of incidence to have high reflection at 400 nm and high transmission at 800 nm, this mirror can have a double use of being a dichroic beamsplitter or beam combiner. Having a bandwidth of 80 nm centered at 400 nm, this mirror can support minimum pulse durations ranging from 9 fs to 12 fs, depending on the spectral shape.
Технические характеристики
- Wavelength Region UV
- Wavelength Range 360-440 nm
- Diameter 25.4 mm
- Material N-BK7
- Coating Code UF.HR40
- Surface Quality 10-5 scratch-dig
- Surface Flatness λ/10 at 633 nm
- Wedge
- Angle of Incidence 0°
- Clear Aperture > central 85% of diameter
- Back Surface Commercial Polished
- Reflectivity R>99.6% @ 360-440 nm, T>96% @ 500-1000 nm
- Thickness 6.35 mm
- Thickness Tolerance ±0.1 mm
- Diameter Tolerance +0/-0.1 mm
- Cleaning See How to Clean Optics
