Description

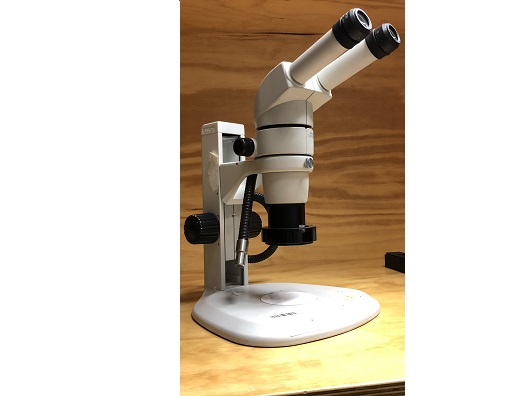

By utilizing an ergonomic design to improve the operator»s posture while working, the SMZ800 reduces fatigue caused by long hours of microscope observation. In addition to superb optical performance, this stereo microscope features an array of useful accessories, allowing the system to grow as your requirements change at an affordable price.
Specification:
- Optical System: Parallel Optical Zoom System
- Zoom Range: 1x to 6.3x
- Zoom Ratio: 6.3 : 1
- Total Magnification: 5x to 378x depending on eyepiece and objective used (7.5x to 525x when coaxial episcopic illuminator is attached)
- Distance between Optical Axes: 22mm
- Zooming Knob: Coaxial control knobs on both sides, with clickstops (on/off), magnification indicated
- Aperture Diaphragm: (Option)
- Eyepiece: Nikon C-W10xA/22
- Eyepiece Tube Mounting: 54mm diameter, 60° round dovetail
