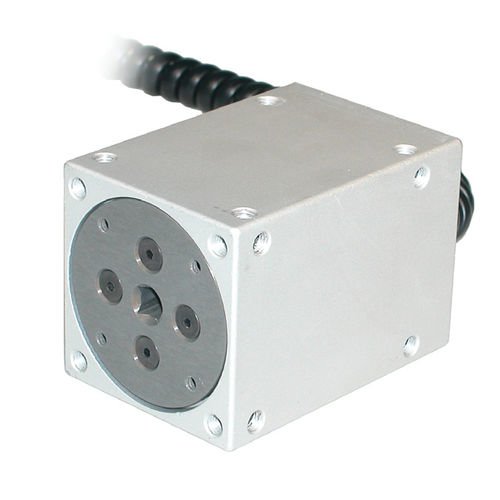

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). Features and specifications •Member of the Plug & Test™ family of interchangeable sensors and indicators •Rugged aluminum housing •Universal mounting •May be used for torque tool calibration or as a component of a torque testing system •NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge. •Accuracy: ± 0.35% of full scale + indicator •Weight: 1.2 lb (0.5 kg) •Warranty: 3 years
Технические характеристики
CharacteristicsTypestaticOther characteristicsbidirectionalTorque
Max.: 11.5 Nm (8.48 ft.lb)
Min.: 0.07 Nm (0.05 ft.lb)
