The Mitutoyo V-anvil micrometer standards are built with the same precision as our micrometers to reliably set the zero point on Av-anvil micrometers. The standard»s measuring faces are exceptionally flat and lapped for precise, repeatable measurements over time. The handle is heat insulated to prevent expansion due to body temperature.
- Available in 7 different metric and inch diameters
- Supplied in fitted carton
| Order No.: | Product Image: | Units: | Accuracy: | Diameter: | Type: | |
|---|
| 167-327 | — | Metric | ±2µm | 5mm | Plug |
| 167-328 | — | Metric | ±2µm | 10mm | Plug |

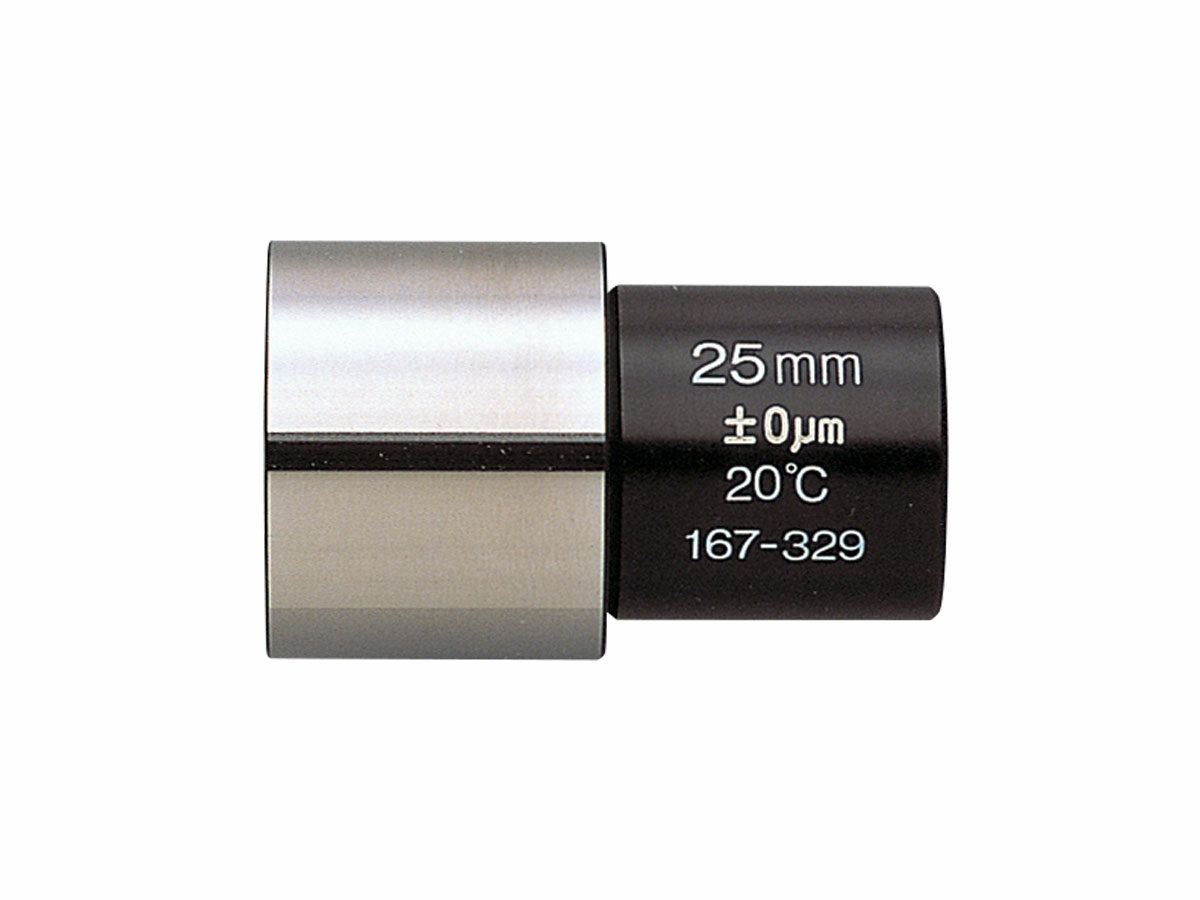

| 167-329 | — | Metric | ±2µm | 25mm | Plug |
| 167-330 | — | Metric | ±3µm | 40mm | Ring |
| 167-331 | — | Metric | ±3µm | 55mm | Ring |
| 167-332 | — | Metric | ±3µm | 70mm | Ring |
| 167-333 | — | Metric | ±3µm | 85mm | Ring |
| 167-337 | — | Inch | ±0.0001″ | 0.2″ | Plug |
| 167-338 | — | Inch | ±0.0001″ | 0.4″ | Plug |
| 167-339 | — | Inch | ±0.0001″ | 1″ | Plug |
| 167-340 | — | Inch | ±0.00015″ | 1.6″ | Ring |
| 167-341 | — | Inch | ±0.00015″ | 2.2″ | Ring |
| 167-342 | — | Inch | ±0.00015″ | 2.8″ | Ring |
| 167-343 | — | Inch | ±0.00015″ | 3.4″ | Ring |
