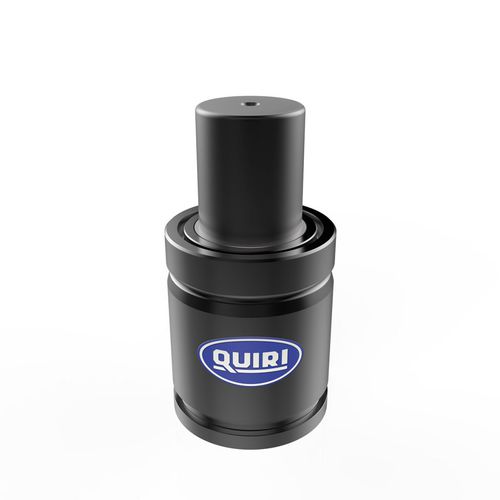

Micro RMGE gas springs with following specifications : •Inflating valve on the piston end •Not connectable, not repairable •Double sealing and oil chamber for intensive use •Bottom equiped with female thread thread M8 for fastening •Maximum inflating pressure : 180 bar •Minimum inflating pressure : 25 bar •Temperature limit : 0 / +70°C •Maximum piston rod speed : 1.6 m/s •Gas : nitrogen
Технические характеристики
CharacteristicsRod materialstainless steelApplicationsfor industrial use, for the automobile industryOther characteristicsmicroForce
Max.: 200 daN
Min.: 50 daN
Stroke
Max.: 125 mm (4.9 in)
Min.: 10 mm (0.4 in)
Body diameter
25 mm (1 in)
