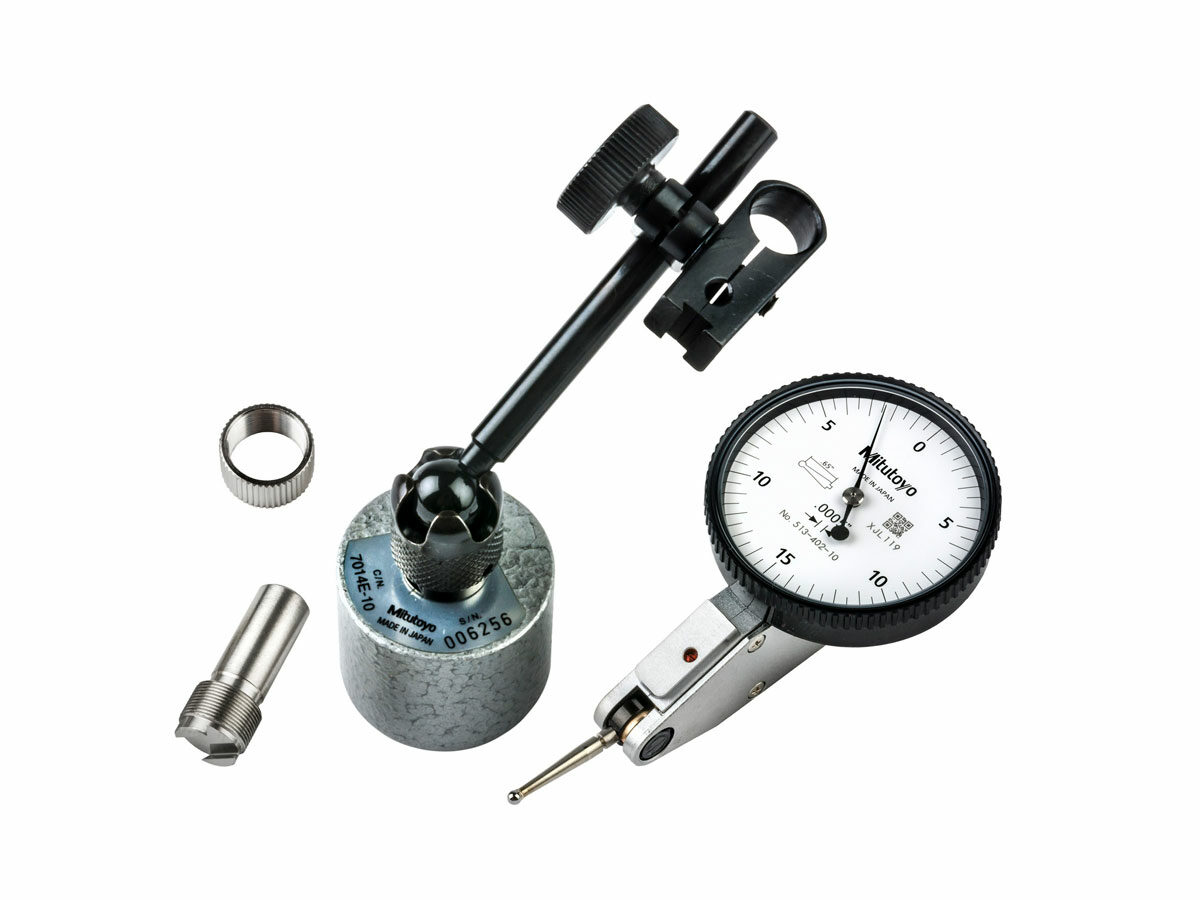

The Mitutoyo horizontal type special set dial test indicator with reversible measuring direction and adjustable contact point is ideal for measuring surface variations in narrow or recessed areas with high precision. The dial test indicator»s one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response. The horizontal face is parallel to the axis of the indicator, and the indicator can be mounted either horizontally or vertically from the front, top or back of the indicator. Includes indicator with mini magnet stand.
- Available in Metric and Inch sets
- No-clutch structure provides automatic reversal of measuring direction
- O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
- Contact point length is printed on the dial face to avoid accuracy issues
- Newly designed contact point holder prevents backlash
- Contact point is carbide tipped for lasting accuracy, durability
- Crystal is glare-free with a scratch-resistant coating
- Includes mini magnet stand
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Units: | Contact point length: | Graduation: | Min Range: | Max Range: | Dial reading: | Accuracy: | |
|---|
| 513-907-10E | — | Inch | 19.9mm | 0005″» | 0″ | .03″ | 0-15-0 | ±.0005″ |
| 513-908-10E | — | Metric | 20.9mm | 0.01mm | 0mm | 0.8mm | 0-40-0 | ±8µm |
Технические характеристики
| Technology: | Mechanical |
|---|
| Contact Point: | Carbide |
|---|
| Measuring Force: | 0.3 or lessN |
|---|
| Anti-magnetic: | Yes |
|---|
| Jeweled Bearing: | Yes |
|---|
