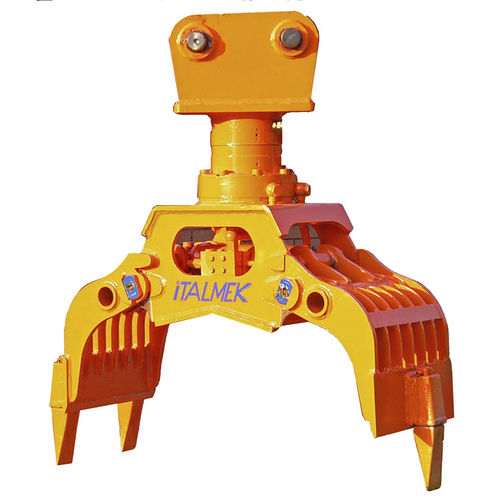

Demolition sorting grab IDG6 IDG6 demolition sorting grab has a weight of 500 kg and a mouth opening of 1.500 mm. The maxim hydraulic working pressure is 250-280 bar. TECHNICAL DATA SHEET WEIGHT kg500 MOUTH OPENING mm1.500 HEIGHT mm1.080 JAW WIDTH mm550 BUCKET POSITION ton6 — 10 CAPACITY m30,120 WORKING PRESSURE bar250 — 280 WORKING FLOW l/m70 BLADE FORCE kg2.100 ROTATION PRESSURE bar180 ROTATION FLOW l/m10
Технические характеристики
CharacteristicsTypesortingOperationhydraulicApplicationsscrap, for stoneOther characteristicsfor excavatorsCarrier weight
2,100 kg (4,630 lb)
