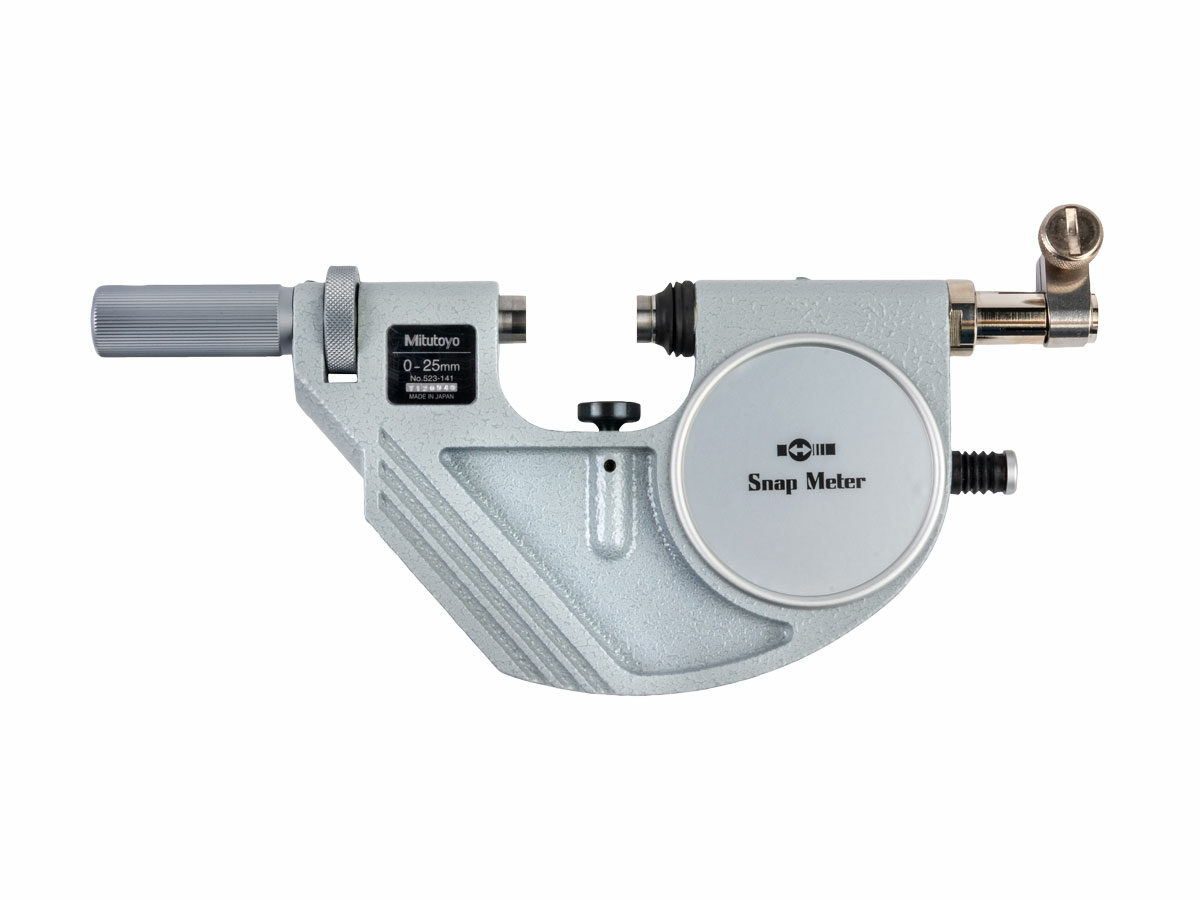

The Mitutoyo snap meter gage utilizes a hardened steel spindle and anvil with carbide faces for precise, highly reliable outside dimension measurements. Many different types of dial or digital indicators attach to the spindle, allowing for GO/NG measurements on a wide variety of applications. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.
- Available in Metric or Inch models
- Metric gage stem diameter is 8mm
- Dial or digital indicator is optional and sold separately
- Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
- Satin chrome finish on the thimble and sleeve resists rust and reduces glare
- Supplied in fitted plastic case
| Order No.: | Product Image: | Range: | Mass: | Parallelism: | |
|---|
| 523-141 | ![]() | 0-25mm | 710g | 0.6µm or less |
| 523-142 | ![]() | 25-50mm | 810g | 0.6µm or less |
| 523-143 | ![]() | 50-75mm | 920g | 1µm or less |
| 523-144 | ![]() | 75-100mm | 1050g | 1µm or less |
| 523-141 |
| 523-142 |
| 523-143 |
| 523-144 |
Технические характеристики
| Technology: | Mechanical |
|---|
| Units: | Metric |
|---|
| Anvil movement: | 2mm |
|---|
| Measuring Force: | 5-10N |
|---|
| Flatness: | 0.3µm |
|---|
| Measuring Faces: | Carbide tipped |
|---|
| Stem Diameter: | 8mm |
|---|
