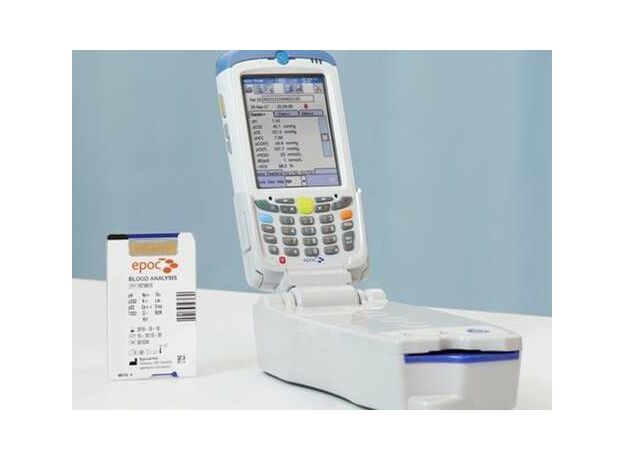

The Siemens EPOC Arterial Blood Gas system is a handheld, wireless solution to enable comprehensive blood analysis testing at the patient’s side on a single room temperature test card, with results in less than a minute. Accelerate clinical decision-making is one of the best features of Siemens EPOC Arterial Blood Gas.
Some best features of Siemens EPOC Blood Gas Analyzer, ABG Machine:
Streamline patient-testing workflow — Caregivers, patients, and hospital administration all benefit from a less-complex testing procedure that increases turnaround times, patient care, and operational efficiencies by shifting testing to the patient’s side.
Accelerate clinical decision making — Siemens EPOC Arterial Blood Gas Empower physicians with lab-quality findings at the patient’s side to make faster judgments, boosting clinical decision-making and patient outcomes.
Simplify inventory management — The Siemens EPOC Arterial Blood Gas system provides a more efficient and easy-to-manage patient-side testing program by combining a full menu on a single, room temperature-stable test card bar-coded for quality assurance.
Deliver real-time results and reporting — You can quickly send results from the patient’s side to the EMR/LIS/HIS with the help of Siemens EPOC Arterial Blood Gas in real-time and get centralized control of dispersed testing with an integrated, wireless link.
Improve outcomes and workflow while transforming care delivery across clinical pathways.
The EPOC Blood Analysis System ( ABG ) gives you lab-quality results accurately Always.
Technical Details
Sample volume
At least 92 μL
Analysis Time to result
Less than 1 minute
Quality Control
Eurotrol GAS-ISE Metabolite control, Eurotrol Hematocrit control
Test Card
single card
Calibration
Automatically performed prior to every test
Storage
15–30°C
Shelf life
Up to 5 months
Integrated Barcode Scanner
Patient ID and Operator ID, 1D and 2D bar-code format
Operating System
MICROSOFT Windows
Mobile 6.5 Classic
Communications
Real-Time Wireless, LIS/HIS via the data management system
TECHNICAL FEATURE
Measured Parameters:
Parameter Unit of Measure Measurement Range pH pH units 6.5–8.0 pCO2 mmHg 5-250 kPa 0.7-33.3 pO2 mmHg 5–750 kPa 0.7–100 TCO2 mmol/L 5-50 mEq/L Na+ mmol/L 85–180 mEq/L K+ mmol/L 1.5–12.0 mEq/L Ca++ mmol/L 0.25–4.00 mg/dL 1.0–16.0 mEq/L 0.5–8.0 Cl- mmol/L 65–140 mEq/L Hct % PCV 10–75 L/L 0.10–0.75 Glu mmol/L 1.1–38.5 mg/dL 20-700 g/L 0.20-7.00 Lac mmol/L 0.30–20.00 mg/dL 2.7–180.2 g/L 0.03–1.80 Crea mg/dL 0.30–15.00 μmol/L 27–1326 BUN mg/dL 3-120 Urea mmol/L 1.1-42.8 mg/dL 7-257 g/L 0.07-2.57
Calculated Parameters
Parameter Unit of Measure Measurement Range cHgb mmol/L 3.3-25 mg/dL 2.0-15.5 g/L 33-250 cHCO3- mmol/L 1-85 mEq/L cTCO2 mmol/L 1-85 mEq/L BE(ecf) mmol/L 30 – +30 mEq/L BE(b) mmol/L -30 – +30 mEq/L cSO2 % 0-100 GFRmdr*† mL/min/1.73m2 2–60 or >,60 GFRmdr-a*† mL/min/1.73m2 2–60 or >,60 GFRckd‡ mL/min/1.73m2 1-225 GFRckd-a‡ mL/min/1.73m2 1-225 GFRswz§ mL/min/1.73m2 1-275 AGap mmol/L -14 – +95 mEq/L AGapK mmol/L -10 – +99 mEq/L BUN/Crea mg/mg 0.2-400.0 Urea/Crea mmol/mmol 0.8-1615.4 mg/mg 0.4-856.8 A mmHg 5-800 kPa 0.67-106.64 A-a mmHg 1-800 kPa 0.13-106.64 a/A % 0-100 fraction 0-1
Some Specification of Automatic Blood Gas Analyzer:-
- Usage/Application: Laboratory Use
- Assays: Electrolyte
- Operation Mode: Fully Automatic
- Sample Mode: Whole Blood
- Method: Electrical Impedance
- pH: 6.5-8.0
- pCO2 : 0.7-33.3 kPa
- pO2 : 0.7-100 kPa
- Lac : 2.7-180.2 mg/dL
- Glu : 20-700 mg/dL
Estimated Delivery: 5-7Days Warranty :
- From Manufatcurer
- On site
- 1 Years
Brand/Manufacturer Brand: Siemens Display and User Interface Screen Size :
- 3.5 Inch
