The Mitutoyo ABSOLUTE Specialized Inside caliper is specially designed to measure inside dimensions that are otherwise hard to obtain with standard calipers. Available in point-type, knife-edge or inside groove jaws, this specialized caliper is capable of reaching into recesses, bore holes and grooves and provides precise, repeatable measurements. The neck caliper is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making this caliper ideal for the shop floor. Step and depth measurements are possible with the depth bar.
- Available in Metric and Inch/Metric models
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- IP67 protection eliminates dust ingress, protects against temporary water submersion, permits use in environments exposed to cutting oil, dust, etc.
- Unnecessary to wipe or clean the scale
- Most models are supplied in fitted plastic case, 18”/450mm and 24”/60mm models are supplied in a wooden case
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Mass: | Measurable minimum hole diameter: | Remarks: | |
|---|
| 573-642-20 | — | Metric | 10-200mm | 0.01mm | ±0.05mm | 227g | Ø10mm | Knife-edge type |
| 573-645-20 | — | Metric | 10.1-160mm | 0.01mm | ±0.05mm | 147g | Ø10mm | Inside-groove type |
| 573-646-20 | — | Metric | 20.1-170mm | 0.01mm | ±0.05mm | 157g | Ø20mm | Point-jaw type |
| 573-742-20 | — | Metric, Inch | 10.1-200mm / 0.40-8″ | 0.0005″ | ±0.0020″ | 227g | Ø0.4″ | Knife-edge type |

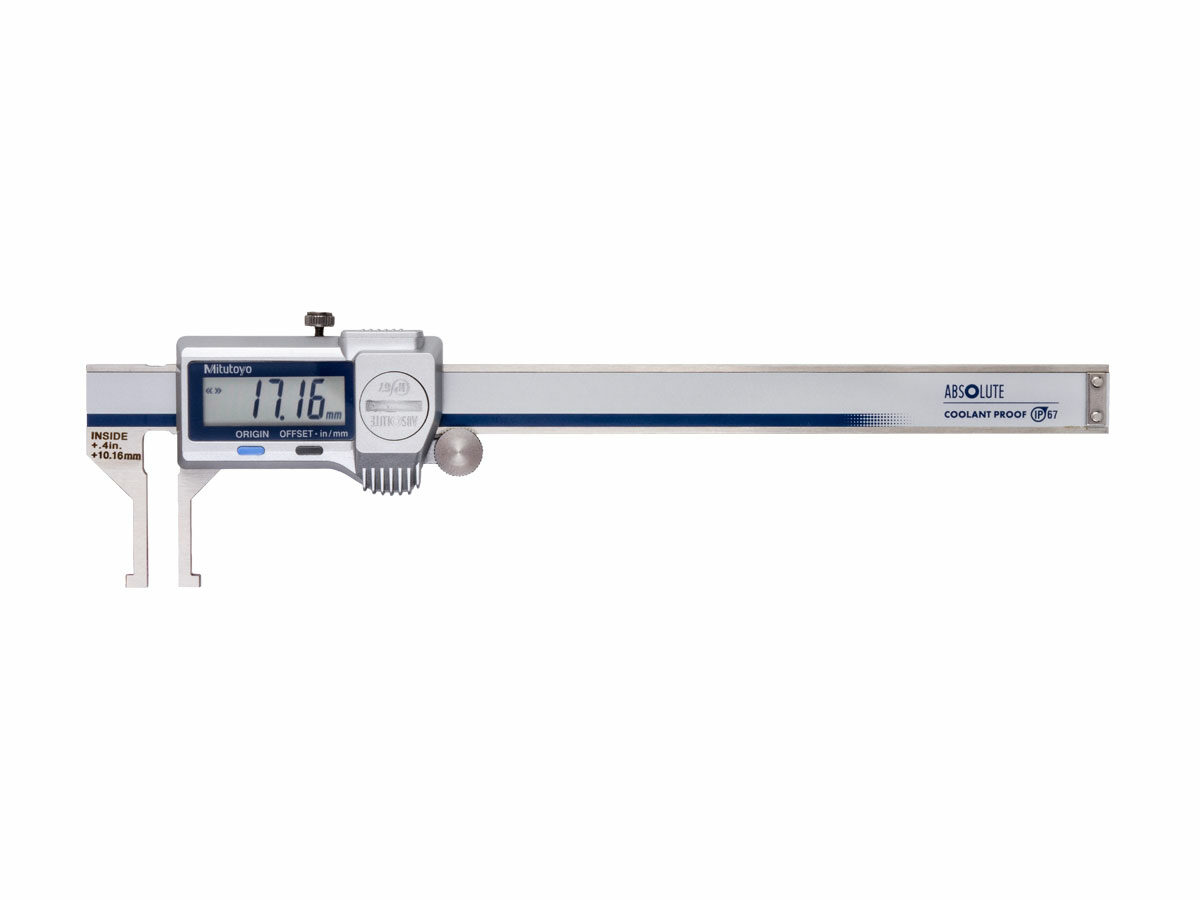

| 573-745-20 | — | Metric, Inch | 10.1-150mm / 0.40-6.4″ | 0.0005″ | ±0.0020″ | 147g | Ø0.4″ | Inside-groove type |
| 573-746-20 | — | Metric, Inch | 20.1-150mm / 0.80-6.8″ | 0.0005″ | ±0.0020″ | 157g | Ø0.8″ | Point-jaw type |
| 573-642-20 |
| 573-645-20 |
| 573-646-20 |
| 573-742-20 |
| 573-745-20 |
| 573-746-20 |
Технические характеристики
| Technology: | Digimatic |
|---|
| Length Standard: | ABSOLUTE electromagnetic induction type linear encoder |
|---|
| Max Response Speed: | Unlimited |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1 pc.) 938882 |
|---|
| Battery life: | Approx. 5 years under normal use |
|---|
| IP Rating: | IP67 |
|---|
| SPC Output: | Yes |
|---|
| Optional Accessories: | 05CZA624, 05CZA625 |
|---|
