Diamond PureFlow syringe filters have a polypropylene housing with a moulded polypropylene sealing ring that secures the membrane. This double injection moulding creates a long-lasting filter that can resist higher pressures than most alternatives.
Benefits
- Performance: High flow rates and low absorption membranes minimize sample loss.
- Simplicity: Color-coded rings allow easy identification of membrane and filter media type. Each filter is clearly marked with a code that indicates membrane material and pore size.
- Strength: The bonded outer ring provides strength under higher pressure.
- Efficiency: Integral PP pre-filter provides both fast filtration and high flow rates.
- Quality: Manufacturing process certified to ISO 9001 standards.

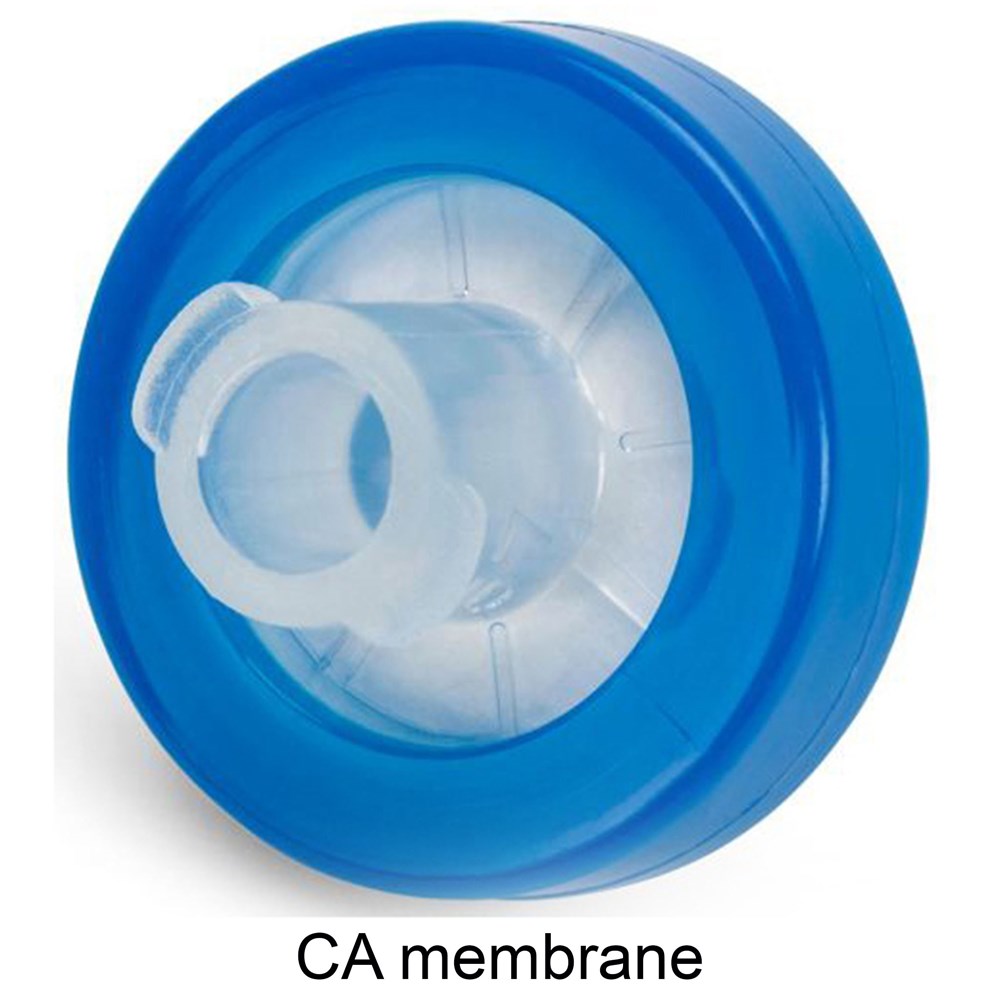

CA (Cellulose Acetate) Membrane
- Low Protein Binding and biologically inert
- Suitable for aqueous samples
- High protein recovery from filtrate
- Ideal for sample
- pH Range: 4-8
Sterile Diamond PureFlow Syringe filters meet the requirements of life science applications for sterilization of solutions or clarification of biological fluids. They include a PP microfiber pre-filter that improved filtration of particulate-laden fluids.
- Individually blister-packed with membrane type, filter diameter, and membrane porosity clearly indicated
- Sterilized by Gamma Irradiation to SAL 10-6
Specifications Diameter 13 mm 30 mm Housing Material PP PP Filtration Area (cm2) 0.092 4.9 Holdup Volume (µl) <,10 <,120 Volume Throughput (ml) 10 100 Connections (Inlet/Outlet) Female Luer Lock Inlet/Male Luer Slip Outlet Max Operating Pressure (psi) 87 87 Max Operating Temperature (°C) 100 100 Prefilter PP PP
Технические характеристики
Diameter
