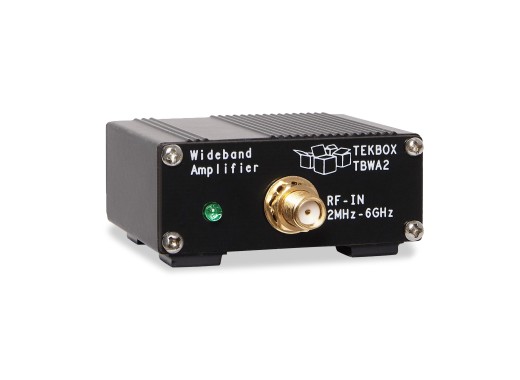

The Tekbox TBWA2 wideband amplifier is available in 20dB and 40dB gain and has a frequency range of 1 MHz — 6 GHz. Compared to the TBDA1, these amplifiers have a greater frequency range making them suitable for boosting high frequency signals in EMC pre-compliance testing.
The amplifiers can also be bought in a set for a significant discount.
Specifications Model TBWA2/20dB TBWA2/40dB Price 206 €206.00 Excl. VAT 260 €260.00 Excl. VAT Maximum input power +10 dBm -10 dBm Gain 14.8 dB @ 1 MHZ
20.2 dB @ 10 MHZ
20.2 dB @ 100 MHZ
20 dB @ 500 MHZ
19.8 dB @ 1 GHZ
19 dB @ 2 GHZ
17.6 dB @ 3 GHZ
17.4 dB @ 4.5 GHZ
15.4 dB @ 6 GHZ 30 dB @ 1 MHz
40.2 dB @ 10 MHZ
40.2 dB @ 100 MHZ
40 dB @ 500 MHZ
39.5 dB @ 1 GHZ
37.6 dB @ 2 GHZ
36.4 dB @ 3 GHZ
34.6 dB @ 4.5 GHZ
34.7 dB @ 6 GHZ 1 dB output compression point +20 dBm @ 2 GHz +20 dBm @ 2 GHz Reverse isolation 23 dB 40 dB Noise figure 4.5 … 5 dB @ 2 GHz 5 dB @ 2 GHz Nominal supply voltage 4.5 – 5V, typ. 110mA, Mini-USB-B connector 4.5 – 5V, typ. 210mA, Mini-USB-B connector Maximum supply voltage 5.5 V 5.5 V Connectivity SMA-female
N-male(using included adapter) SMA-female
N-male(using included adapter) Impedance 50 Ω input, 50 Ω output 50 Ω input, 50 Ω output Accessories
The Tekbox TBWA2 comes delivered with:
- 1x SMA-male to SMA-male cable (25 cm)
- 1x SMA-male to N-male cable (75 cm)
- 1x SMA-female to N-male coaxial adapter
- Measurement plot
- USB cable
