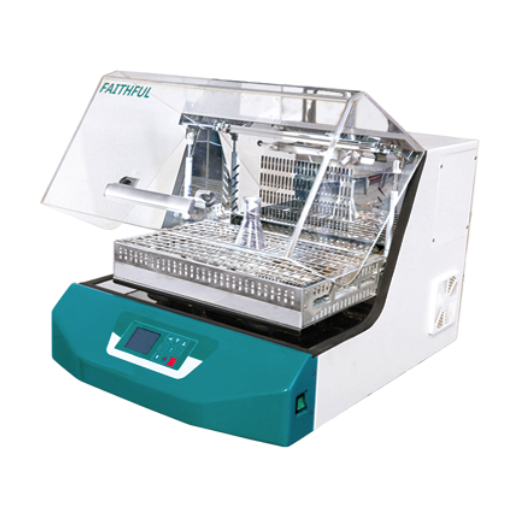

Labec shaking incubators are ideal for shaking cultures and samples in a constant temperature where accurate temperature and an oscillation action is required. These models are available in heat only or refrigerated with heating model. High precision speed control and PID feedback control, avoid damage from long time motor working at low speed causing motor under over heating with fault self-diagnosis, indicating fault location and fault code, to help find and solve problems.
Features:
- Large screen LCD, shows temperature, speed, working time, menu operation interface, easy to operate
- Microcomputer control temperature and oscillation frequency with timing functions, built-in power off protection with automatic operation after power on
- Unique air duct breeze circulation, large observation window
- Speed control: intelligent brushless DC motor, high speed accuracy, slow start design, auto lock if speed Out Of control. adjustable starting speed to prevent the splash of shake flask liquid
- Function of cutting off UV lamp by open door
- Waterproof, spills will not affect the normal operation of the machine
Specifications:
Product EF-FS-50B
EF-FS-70B
Temperature Range Ambient +5ºC ~ 65ºC
4ºC ~ +65ºC Circulation and Cooling Horizontal convection, non-refrigerated Horizontal convection, refrigerated (R134a)
Temperature Control LCD PID intelligent control, touch button setting
Temperature Accuracy and Uniformity ±0.1ºC, ±0.1ºC Ambient Environment +5ºC ~ 30ºC
Oscillation Mode Cyclotron Oscillation Shaking Speed 30-300RPM ±1RPM
20mm amplitude Speed Sensor Hoare Timer 0- 9999 Construction Interior — mirror stainless steel
Window — imported resin
Insulation — polyurethane
Heater — stainless steel heating tube
Tray — universal spring grid tray Shaking Plate 380 x 320mm
(Max. 10kg loading/shelf) 480 x 315mm
(Max. 15kg loading/shelf)
Capacity 50L 70L Internal Dimensions (W x L x H)
455 x 380 x 290mm 560 x 390 x 320mm External Dimensions (W x L x H) 500 x 640 x 480mm 600 x 770 x 500mm Power 600W 800W Power Supply 220V/2.5A 50/60Hz 220V/3.5A 50/60Hz
Weight 55kg 85kg Flask Clamp Capacity 100ml x 16
250ml x 9
500ml x 4
1000ml x 4
100ml x 24
250ml x 12
500ml x 6
1000ml x 6
Operational Functions Fixed value operation, timing, bidirectional automatic switchover, auto stop, quick stop/start, deviation correction, menu lock, power off memory
