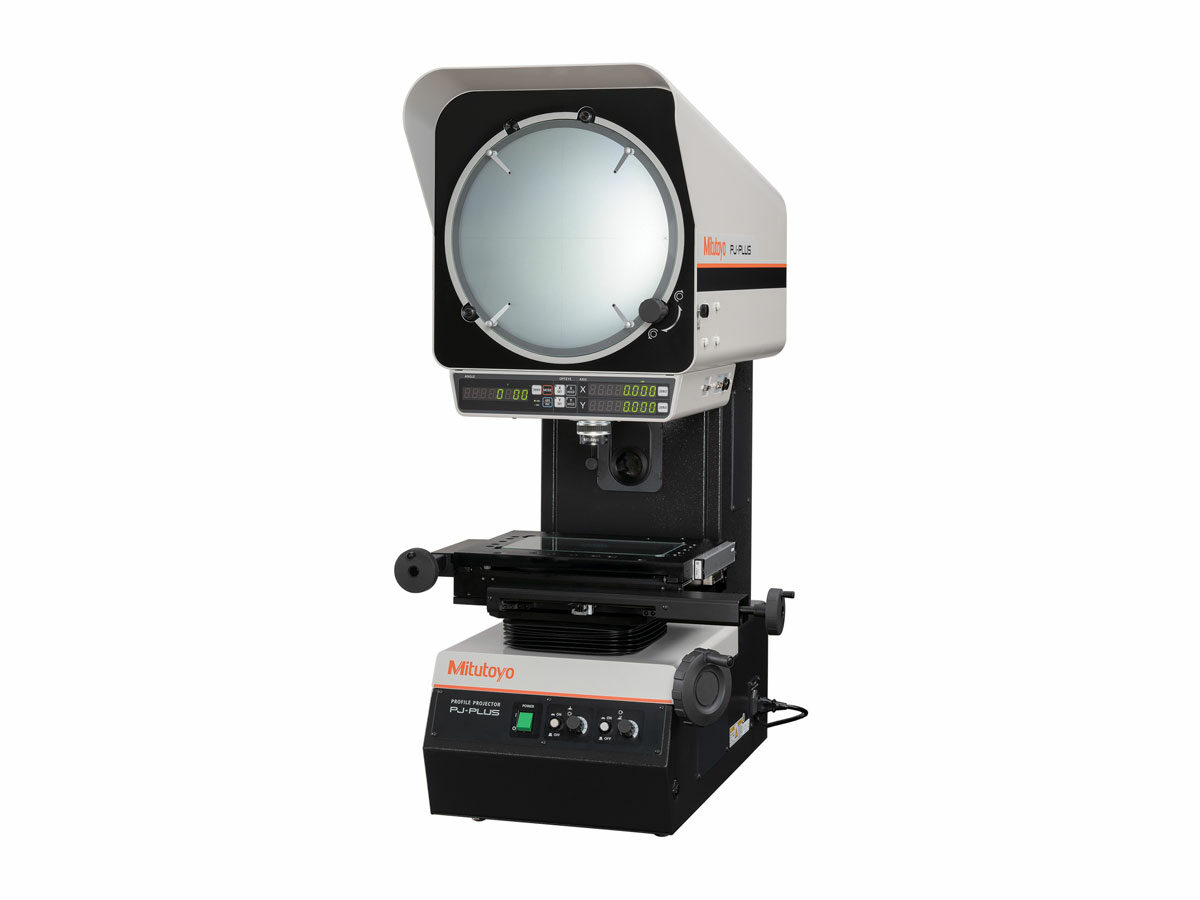

Серия ПиДжей Плюс

Профильные проекторы Mitutoyo PJ-Plus используют светодиодное освещение и обеспечивают надежные измерения в условиях производственной площадки. PJ-Plus обеспечивает стабильные измерения размеров и углов в более суровых условиях, с которыми обычные модели не справляются, например, на производственных и технологических линиях.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo PJ-Plus profile projector series provides highly accurate, stable dimension and angle measurements in harsh processing lines and other manufacturing environments. The PJ-Plus implements LED illumination, a brand-new feature and design on profile projectors, replacing traditional halogen lighting. The new LED illumination source offers better durability and longer service life, prevents rate of decline in illumination by about 50%, and eliminates the need for a cooling fan in the main unit, drastically decreasing the entry of oil, mist, dust, etc. into the measuring instrument.

Effective stepless illumination control for lighting levels to be precisely set to suit surface texture and color of the workpiece
Built-in digital XY counter on the front of the machine and displays XY axes and angle readings
PJ-Plus is available in packages with the Metlogix M2 software, touch screen tablet with or without edge detection

Order No.:	Product Image:	Model:	Projection lens Magnification:	Workpiece Max Height:	Mass:

Order No.:

302-801-10	—	PJ-P1010A	10X (Standard accessory), 20X, 50X, 100X	91mm	114kg / 251 lbs
302-802-10	—	PJ-P2010A	External half-reflecting mirror for surface illumination (only for 10X, 20X)	90.5mm	118kg / 260 lbs

302-801-10

302-802-10

Технические характеристики

Projected Image:	Inverted
Protractor screen diameter:	ø.315mm / 12.4′
Protractor screen rotation:	±360° (The counter displays up to ±370°)
Protractor screen Angle:	Digital counter (ABS / INC mode switching), Zero Set
Protractor screen Resolution:	1’ or 0.01° (switchable)
Protractor screen Cross-hairs:	90° solid lines
Projection lens Magnification Lens mount:	Bayonet mount
Magnification accuracy Contour illumination:	±0.1 % or less of nominal magnification
Magnification accuracy Surface illumination:	±0.15 % or less of nominal magnification
Contour illumination:	White LED light source, Telecentric, Variable brightness adjustment
Surface Illumination:	White LED light source, With an adjustable condenser lens, Variable brightness adjustment
Resolution:	0.0001′ / 0.001mm
Power Supply:	100 V to 240 V AC, 50 / 60 Hz
Power Consumption:	60 W
