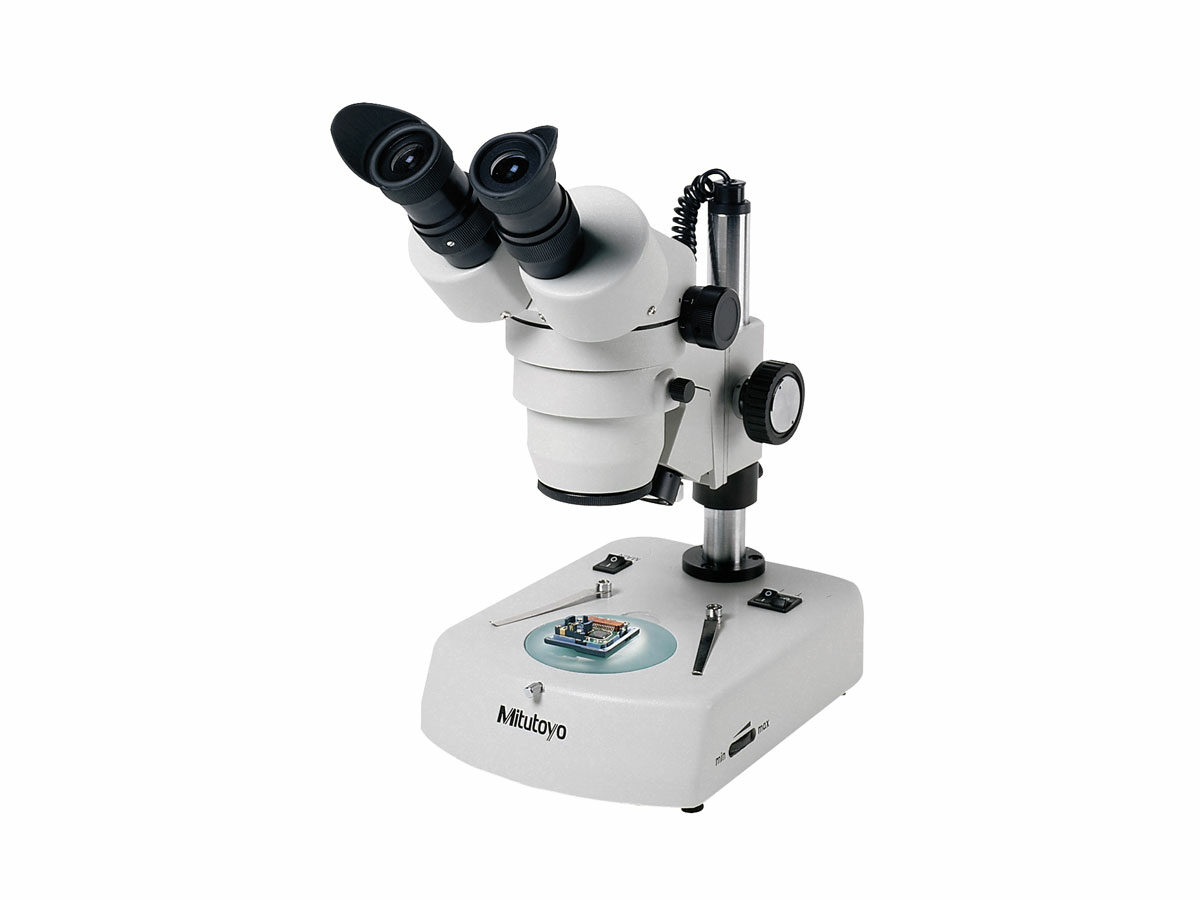

The MSM-414L stereo microscopes creates crisp, erect images with high resolution and excellent stereoscopic effect. The image is always in focus throughout the 1x to 4x objective magnification range.
• Designed for industrial, medical and classroom applications
• Microscope head can be rotated a full 360° for viewing at any angle
• Bilateral zoom control knob adds convenience and increases operator efficiency
• Diopter adjustment for both eyepieces provides custom fit and added comfort
| Order No.: | Product Image: | Model: | Optical Tube: | Accessories: | |
|---|
| 377-972A | — | MSM-414L | Binocular | — |
| 377-974A | — | MSM-414TL | Trinocular | — |
Технические характеристики
| Eyepiece: | 10x |
|---|
| Objective: | 1x-4x |
|---|
| Total magnification: | 10x — 40x |
|---|
| Working Distance: | 80mm |
|---|
| Field of view: | 20mm-5mm |
|---|
| Mass: | 6kg / 13.2 lbs |
|---|
| Dimensions: | 13.2H x 6.7W x 9.3D’ |
|---|
