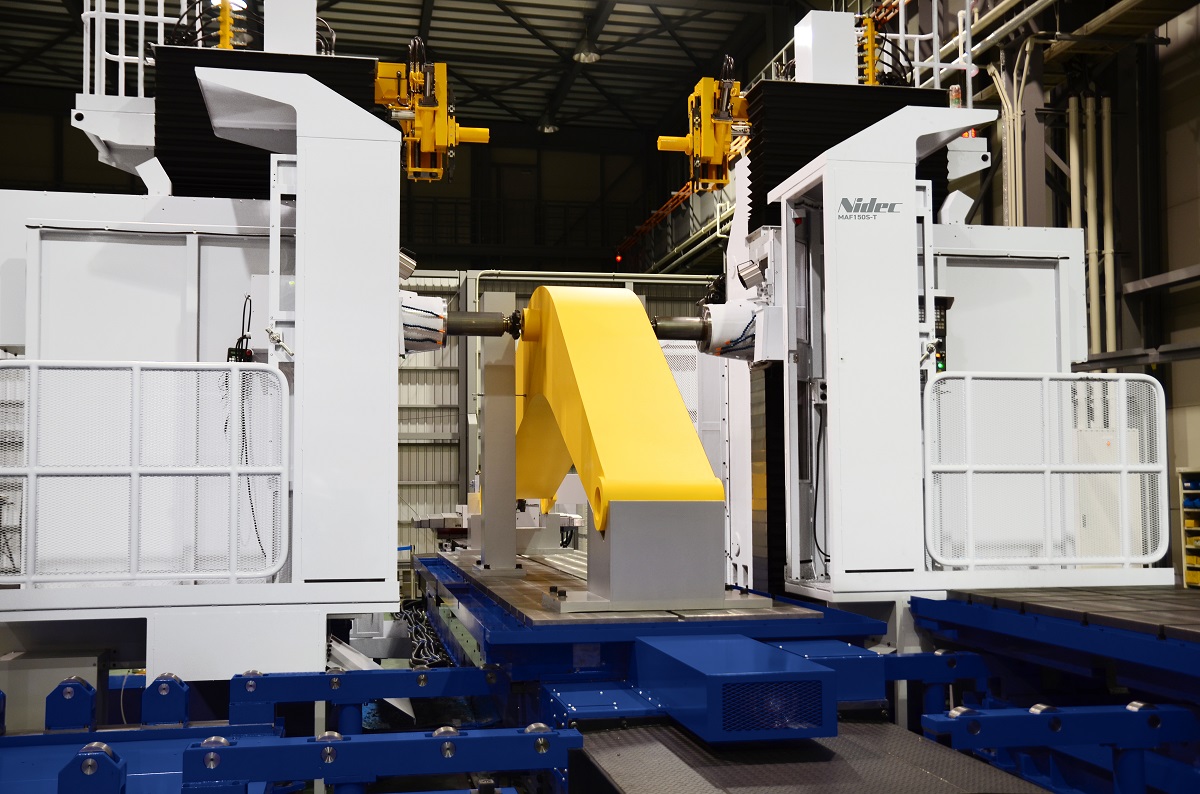

Серия Nidec MAF-S

The Nidec MAF-S Series horizontal boring mills fill the need for large part manufacturing. Nidec Machine Tool America LLC is the leader in large machine manufacturing and continues to develop and produce a variety of large machine tools in both vertical and horizontal configurations.

Технические характеристики

Specifications

MAF-S Models

• MAF-S130A


  Specification	Detail
  X-Axis Travel	59.1»
  Y-Axis Travel	59.1» 78.7» 98.4»
  Z Axis Travel (Spindle in/out)	25.6»
  Boring Spindle Diameter	5.1»
  Spindle RPM	2500 (opt. 3000)
  Spindle Taper	CAT-50
  Spindle Horsepower	24/30 (opt. 30/40)
  ATC Capacity	30 (opt. 40, 60, 80)

• MAF-S150A


  Specification	Detail
  X-Axis Travel	59.1»
  Y-Axis Travel	59.1» 78.7» 98.4»
  Z Axis Travel (Spindle in/out)	25.6»
  Boring Spindle Diameter	5.9»
  Spindle RPM	2500 (opt. 3000)
  Spindle Taper	CAT-50
  Spindle Horsepower	24/30 (opt. 30/40)
  ATC Capacity	30 (opt. 40, 60, 80)
