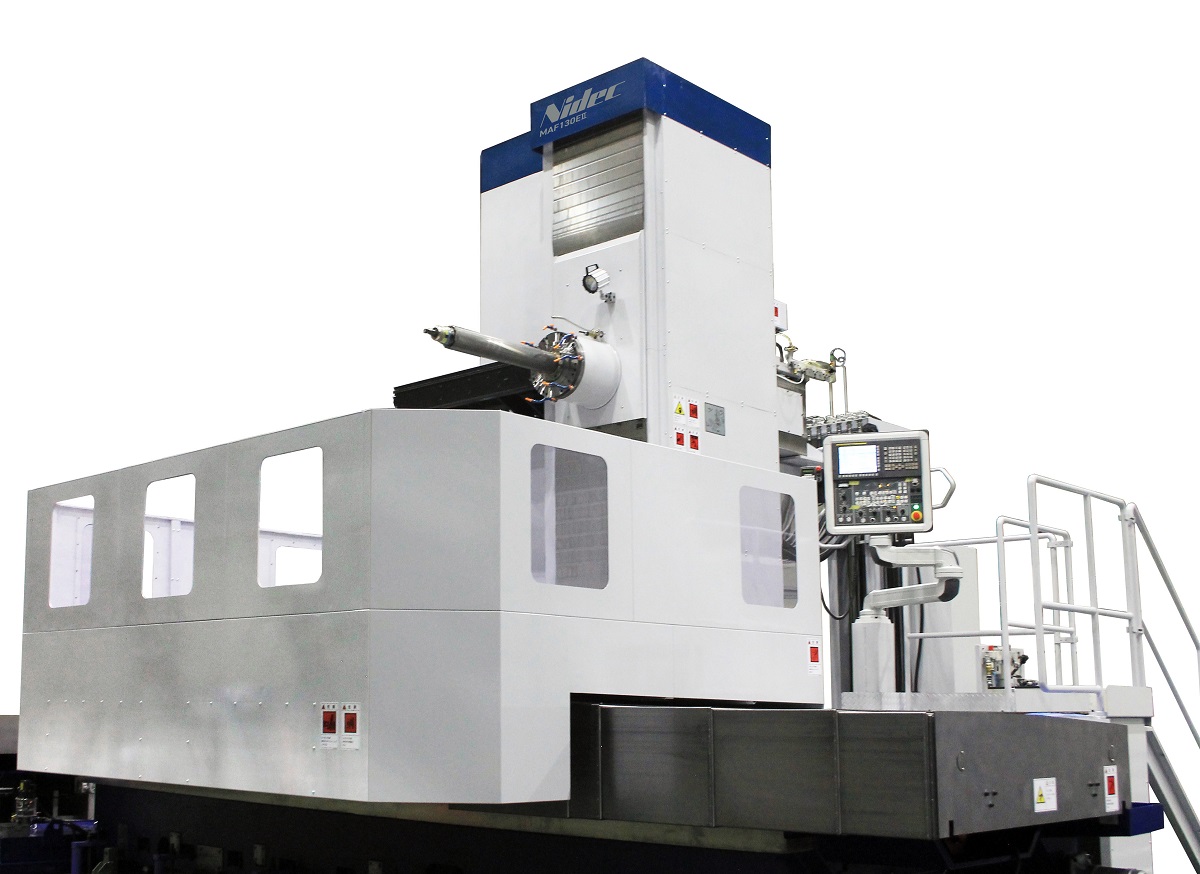

The Nidec MAF-E II is a horizontal boring mill that has been developed to meet the needs of higher precision and higher efficiency machining larger components through thermostabilized columns, the spindle cooling system and the rigid construction of the machine.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X-Axis Travel | 118.1′ |
| Y-Axis Travel | 90.5′ |
| Z-Axis Travel (Column in/out) | 63.0′ |
| W-Axis Travel (Spindle in/out) | 31.4′ |
| Table Size | 70.8′ x 78.7′ (opt. 78.7′ x 86.6′, 78.7′ x 98.4′) |
| Table Load | 44,000 lb. |
| Boring Spindle Diameter | 5.1′ |
| Spindle Speed | 5-2,500 min-1 |
| Spindle Nose Taper | ISO No. 50 (Taper 7/24) |
| Spindle Horsepower | 40/50 |
| ATC Capacity | 50 (opt. 80, 100) |
